Kit plug for DTM 2 cavity Deutsch connector for 20-24 AWG wire Kits contains housing only. (pack of 10pc)
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

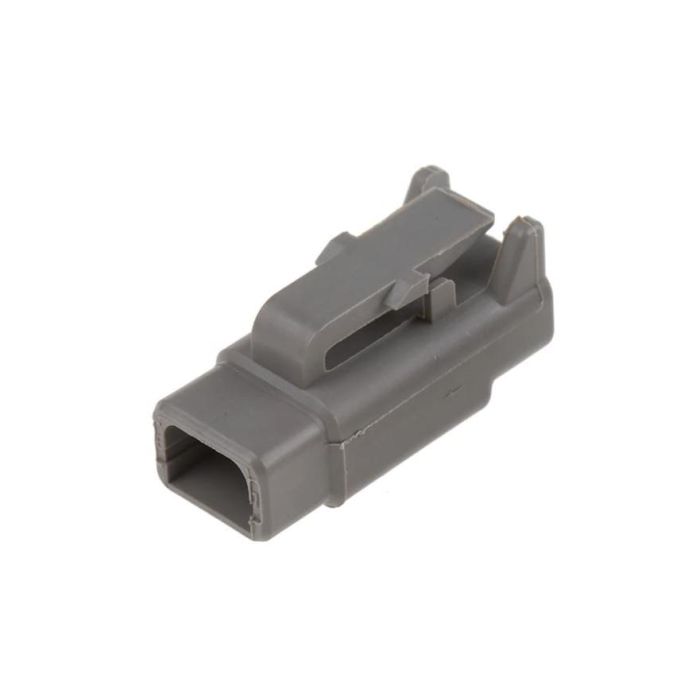

DTM Connector, Plug, 2 Cavity
DTM Series connectors are designed for smaller wire gauge applications. The DTM series offers electrical designers the ability to use multiple size 20 contacts (20-24 AWG) each with 7.5 Amp continuous capacity, within a single shell.
Note : Kits contains housing only. Wedgelock, pins and sockets sold separately.
APPLICATIONS: Deutsch environmentally sealed connectors are designed for cable to cable applications, where signal-level or power circuits must withstand harsh conditions
COMPLIANCES:
- UL recognized
- RoHS
- IP 6K9K (DT, DTM)
- J1939/11, J1939/13 and J1939/15
CHARACTERISTICS:
- Operating Temperature -55°C to 125°C
- Durability: No defects after 100 cycles of engagment/disengagement
To make a complete female connection you will need: Receptacle + Wedgelock + Pin + Boot + Cavity plug.
To make a complete male connection you will need: Plug + Wedgelock + Socket + Boot + Cavity plug.
General Specification
No specifications available.
