Isolation transformer IVET 13
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
A safe connection between vessel and shore installation is an essential part of your electrical system. A galvanic electrical isolation between shore power and the on board power prevents any electrical corrosion of metal parts while keeping you earthed.
IVET Heavy-duty Series

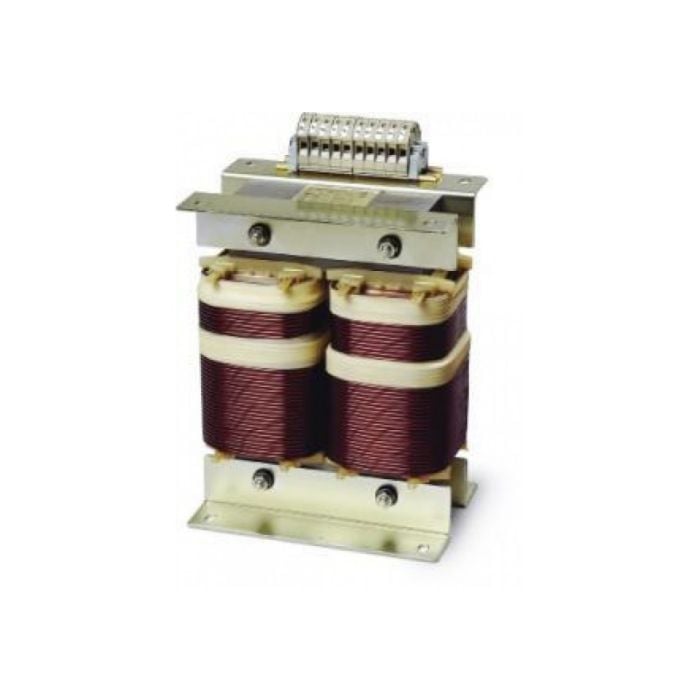

High-output E-core isolation transformer without casing, for self installation. The product is multi tap, meaning you can handle 120/230/240 V going in and out.
Mastervolt recommends to install the IVET heavy-duty isolation transformer with Soft Start. Soft Start suppresses the inrush current from the transformer and prevents the power fuse from blowing.
- High-quality isolation transformers without casing for self installation.
- Optional Soft Start, in synthetic casing.
- Capacities of 2.5 kW to 22 kW.
General Specification
| Output voltage (± 5 %) | 120/220/240 V |
| Output frequency range | 45-65 Hz |
| Input voltage range | 110/220/240 V |
| Input frequency range | 45-65 Hz |
| Nominal input current (230 V) | 57 A |
| Galvanic isolation | yes |
| Efficiency | > 93 % |
| Power | 13.000 W |
| Dimensions, hxwxd | 490 x 320 x 230 mm 19.3 x 12.6 x 9.1 inch |
| Weight | 90 kg 198.4 lb |
| Approvals | CE, ABYC |
