Isolation transformer 22kW

AED 26,474.00 Excl. tax

Stock Status: Out of stock

EEPN 08.08.0017 | OEM 85002200
document-text

Description

A safe connection between vessel and shore installation is an essential part of your electrical system. A galvanic electrical isolation between shore power and the on board power prevents any electrical corrosion of metal parts while keeping you earthed.

IVET Heavy-duty Series

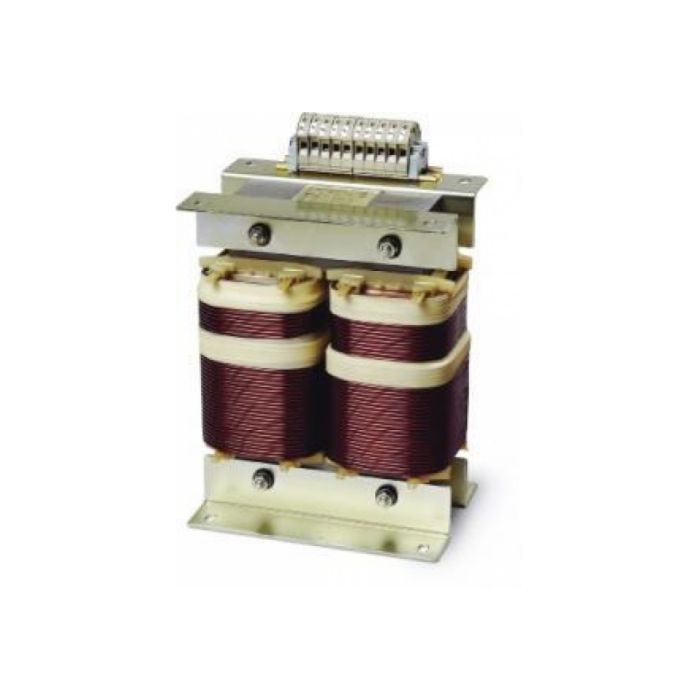

High-output E-core isolation transformer without casing, for self installation. The product is multi tap, meaning you can handle 120/230/240 V going in and out.

Mastervolt recommends to install the IVET heavy-duty isolation transformer with Soft Start. Soft Start suppresses the inrush current from the transformer and prevents the power fuse from blowing.

  • High-quality isolation transformers without casing for self installation.
  • Optional Soft Start, in synthetic casing.
  • Capacities of 2.5 kW to 22 kW.
cog

General Specification

Output voltage (± 5 %) 120/220/240 V
Output frequency range 45-65 Hz
Input voltage range 110/220/240 V
Input frequency range 45-65 Hz
Nominal input current (230 V) 96 A
Galvanic isolation yes
Efficiency > 93 %
Power 22.000 W
Dimensions, hxwxd 490 x 320 x 290 mm 19.3 x 12.6 x 11.4 inch
Weight 130 kg 286.6 lb
Approvals CE, ABYC
