Fuse holder ANL 750A
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Providing high-capacity fusing, fast response and very high interrupt ratings (ANL up to 6,000 A, Class-T up to 20,000 A), these fuse holders are ideal for protecting today’s demanding onboard power electronics technology including inverters and battery chargers. They also protect wiring from short circuits. Pro Installer fuse holders’ durable construction allow fuses to run at maximum load.
- Radiused ends improve cable routing options
- Class-T: 225–400 Amp, 450–600 Amp models available
- ANL: 300 Amp and 750 Amp surface mount options, innovative new 750 Amp through-bulkhead mount holder (Patent pending)
- ANL: for use with 5/16” (8mm) or 3/8” (10mm) ANL fuses
- Conductor material is tin plated copper
General Specification
| Part number | Model | Description | L x W x H (in) | Fuse | A | Fuse stud (mm) | Connecting stud Qty | Connecting stud Size (mm) |
| 08.12.0059 | 778-ANL | Anl fuse holder | 3.9” x 1.9” x 2.1” | Bussmann 8 mm Prudenz or Siba 10 mm | 300A | 8 | 2 Studs | 8 x 22 |
| 08.12.0060 | 778-ANLTP | Anl through panel fuse holder | 3.9” x 1.9” x 1.4” (Fascia side) | Bussmann 8 mm Prudenz or Siba 10 mm | 750A | 8 | Shared with fuse +2 For cables | 10 x 25 |

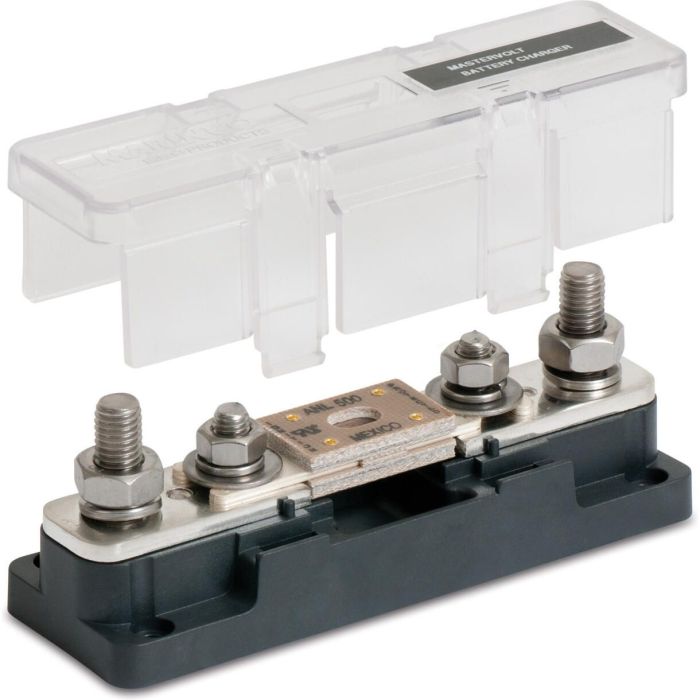

| 08.12.0061 | 778-ANL2S | Anl fuse holder with 2 additional studs | 5.8” x 1.9” x 2.4” | Bussmann 8 mm Prudenz or Siba 10 mm | 750A | 8 | +2 for Cables | 10 x 29 |
| 08.12.0062 | 778-T2S-400 | Class T fuse holder with 2 additional studs | 5.8” x 1.9” x 2.4” | Class T 10 mm | 225-400A | 10 | +2 for Cables | 10 x 29 |
| 08.12.0063 | 778-T2S-600 | Class T fuse holder with 2 additional studs | 5.8” x 1.9” x 2.4” | Class T 12 mm | 450-600A | 12 | +2 for Cables | 10 x 29 |
