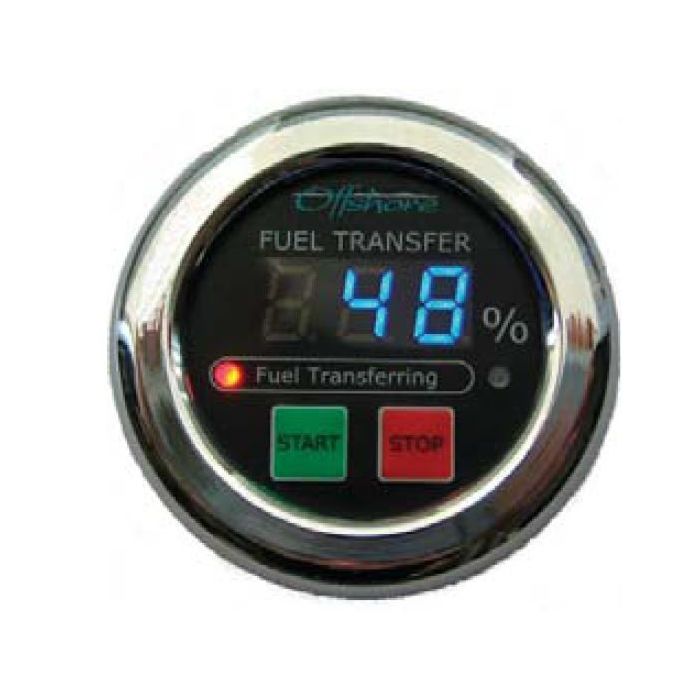

Controller Fuel Transfer 3350

The 3350-FTC Fuel Transfer Controller displays the level of the “Day” or “Consumption” tank on boats fitted with these type of tanks.

It allows the user to manually start the fuel transfer from the Main or Bunker tank into the Day tank. It can also start the Fuel Transfer AUTOMATICALLY when the Day tank level falls below the User settable tank level. It automatically stops the transfer when the Day tank is 95% full thus preventing overfilling and spilling of any excess fuel. The user can also stop the transfer at any time by pressing the Stop button.

The 3350-FTC is fitted with a 10 amp relay to control the transfer pump. The unit mounts entirely in a standard 2” diameter panel hole. The gauge front and the panel seal are both to IP66.

It has a red LED lamp that flashes when the transfer is in progress and a blue LED receiving Tank Level display that varies in brightness as the ambient light level varies. It is certified to the NMEA2000® network standard and attaches to the network using a single “Micro” plug. It draws less than 150mA from the network.

This Fuel Transfer Controller automates and simplifies the task of transferring the fuel into the Day tank. It helps prevent expensive and environmentally damaging fuel spills.
