Tank Controller Black Water Gauge 12/24V Black 2" Cut-Out Panel Mount 68x60mm Dia

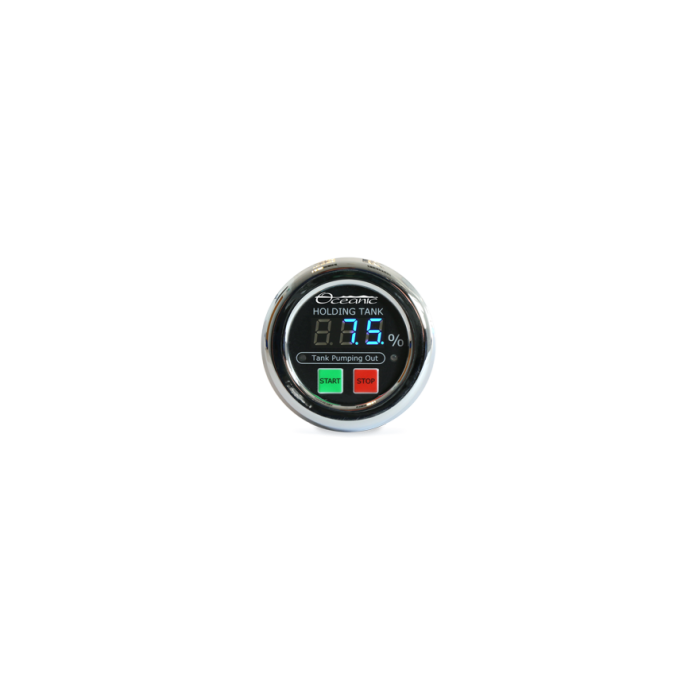

The 3350-GTPO and new 3350-htpo holding tank pump outcontroller displays the holding tank level on a standard 2”panel gauge. The green START button manually starts the pump out where and when allowed. The unit automatically stops the pump out when the tank is empty to avoid the pumps running dry. The user can also stop the pump out at any time by pressing the STOP button. The controller is fitted with a 10 amp relay to control the pump out pump. The unit mounts in a standard 2” diameter panel hole and the front and panel seal is to IP66. It has a red LED lamp that flashes when the pump out is in progress and a blue LED holding tank level display that varies in brightness as the ambient light level varies. It attaches to the NMEA2000® network using a single “Micro” plug. It draws less than 150mA from the network.

• Cut-out size 2”
• Overall Ø 68 mm.
• Voltage 12/24V
