Engine throttle control TC single lever

Pretech Cables & Controls
AED 457.00 Excl. tax

Stock Status: In stock

EEPN 02.08.0029 | OEM 31001
Engine clutch control TC single lever
Engine clutch control TC single lever
EEPN: 02.08.0030
AED 457.00
In Stock
Engine clutch + clutch control TC twin lever
Engine clutch + clutch control TC twin lever
EEPN: 02.08.0033
AED 594.00
In Stock
Engine throttle + clutch control TC twin lever
Engine throttle + clutch control TC twin lever
EEPN: 02.08.0031
AED 594.00
In Stock
Engine throttle + throttle control TC twin lever
Engine throttle + throttle control TC twin lever
EEPN: 02.08.0032
AED 594.00
Out of Stock

Download Document

Drawings
document-text

Description

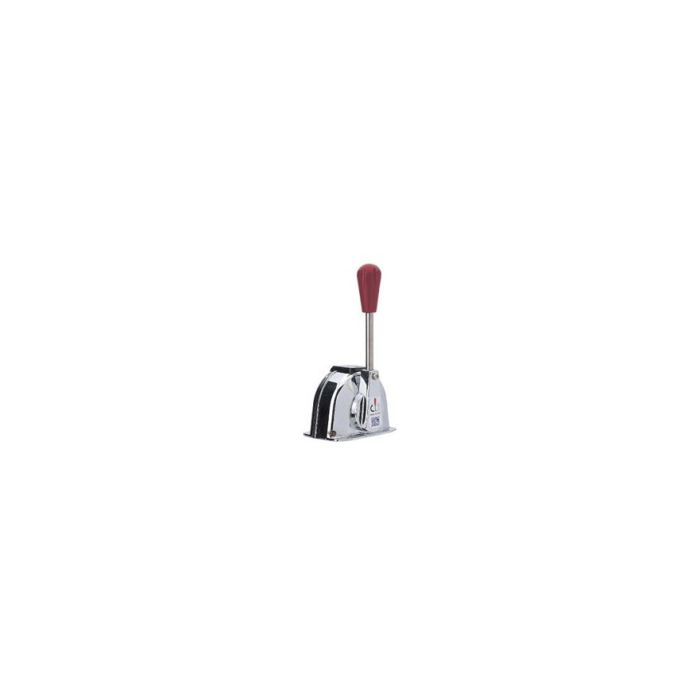

TC single lever throttle with red knob
31001

The TC control is a heavy-duty lever control with positive brake and shut off position for heavy throttles (governors). The throttle lever, a red knob, can activate the brake by turning in a clockwise direction.

Functions
• Single designated function control.
• For throttle application.

Cables
• Uses 3300 Maxflex, 3300S Maxflex Extreme or 4300 Maxflex Series Cables
• Fittings for these cables supplied as standard with the control

cog

General Specification

• Suits outboards, inboards, and sterndrives.
• Suits hydraulic gearboxes (concrete mixer).
• Uses 10-32 (3/16 UNF), 3 inch stroke (75mm).
• Uses 1/4 -28 UNF-2A, 3 inch stroke (75mm).
