Engine throttle + clutch control TC twin lever
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

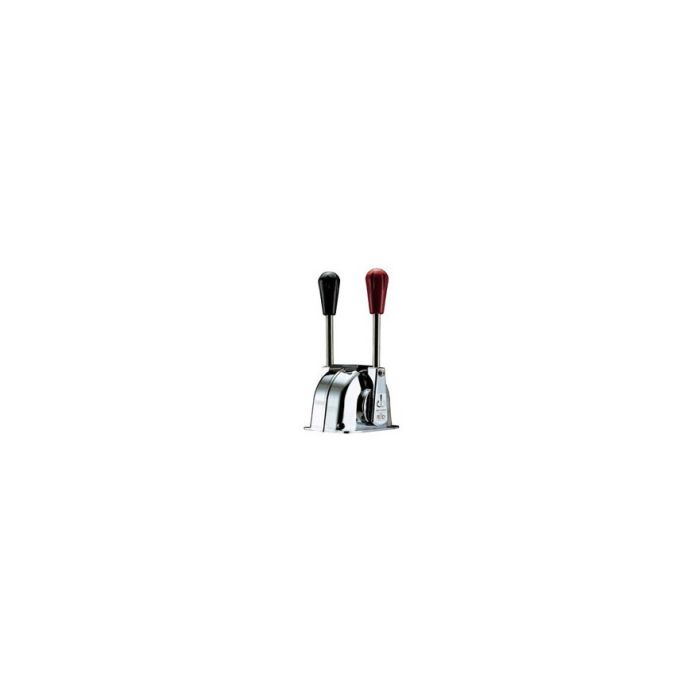

TC twin lever throttle & clutch
36468
The TC control is a heavy-duty lever control with positive brake and shut off position for heavy throttles (governors). The throttle lever, a red knob, can activate the brake by turning in a clockwise direction. The clutch lever, a black knob, has a detent so that the operator can feel the position of neutral, forward and reverse.
Functions
• Single designated function control.
• For throttle, clutch and hydraulic application.
Cables
• Uses 3300 Maxflex, 3300S Maxflex Extreme or 4300 Maxflex Series Cables
• Fittings for these cables supplied as standard with the control
General Specification
• Suits outboards, inboards, and sterndrives.
• Suits hydraulic gearboxes (concrete mixer).
• Uses 10-32 (3/16 UNF), 3 inch stroke (75mm).
• Uses 1/4 -28 UNF-2A, 3 inch stroke (75mm).
