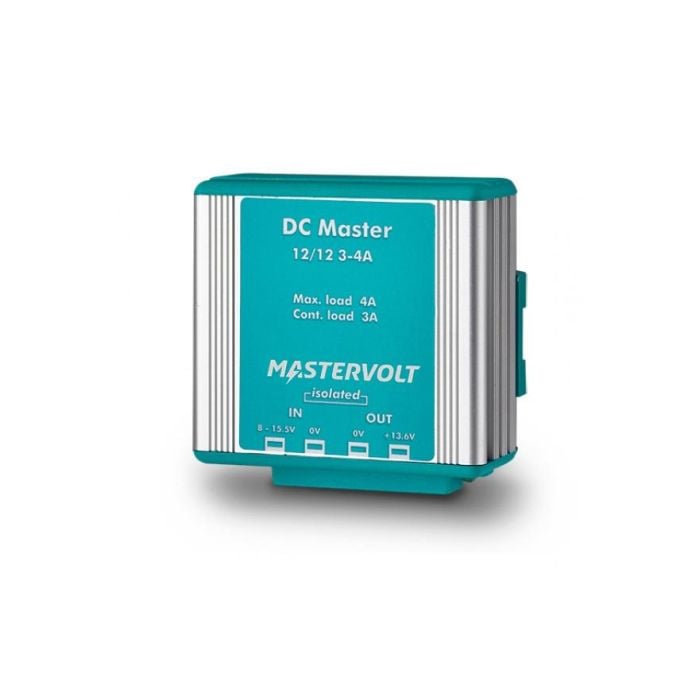

Converter 12/12-3A isolated DC master
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.
- Recreational and semi-professional use.
- Easy to install using included mounting bracket.
- Excellent price/performance ratio.
- Available in isolated and non-isolated version.
The non-isolated DC Master models have an electrical connection between the input and output.
Features:
- Low costs.
- Efficient: low heat generation.
- Compact.
- Suited to applications with negative earthing.
Features:
- Extra touch-proof.
- Interference suppression for sensitive equipment.
- Available with negative or positive grounding.
Intelligent DC-DC converters
A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.
Complete package
All DC Master converters are delivered with mounting bracket, screws and fasteners.
General Specification
| Nominal output voltage | 13.6 V |
| Max. output power | 54 W |
| Nominal output power | 41 W |
| Max. output current (for 2 min. intervals) | 04:00 AM |
| Continuous output current | 03:00 AM |
| Nominal input voltage | 12 V |
| Input voltage range (max.) | 10-15.5 V DC (16 V) |
| Galvanic isolation | yes |
| Stabilised | yes |
| Dimensions, hxwxd | 89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch |
| Weight | 0.28 kg 0.6 lb |
| Approvals | CE, E-mark |
