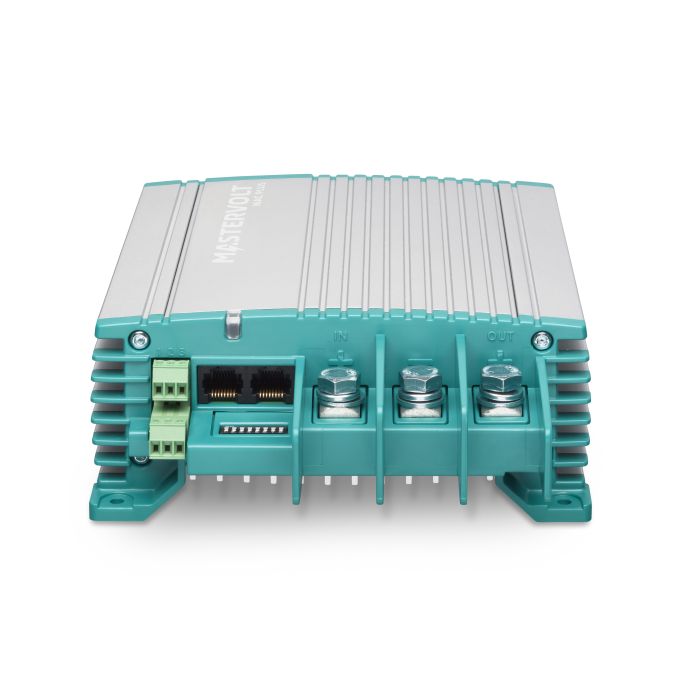

Mastervolt Mac Plus 12/24-30 + CZone

Boost Your Service Battery
Too often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to your service battery. And, by knowing when the engine is running and providing charge, you can be sure that the Mac Plus will never drain your starter battery.

Proven Mastervolt Quality
Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries. A robust design holds up in even the harshest conditions, with battery temperature optimized charging and high-quality aluminum housing to ensure superior protection against dust and water ingress. The power efficient design also allows the Mac Plus to operate silently and without a fan.

Total Power Flexibility
With a wide DC input range, the Mac Plus allows all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. And it also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive. Parallel configurations of up to ten units will provide over 100 amperes. And advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa. Analog voltage sense ports are also available to compensate for voltage drop and maintain proper charging.

Superior Monitoring & Control
Compatibility with CZone®, NMEA 2000® and MasterBus delivers truly superior monitoring and control, and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.

Key Features

• Fast and safe charging, even during short trips.

• Fanless design for silent operation.

• Suitable for flooding, Gel, AGM and Li-Ion batteries (incl. LiFePO4).

• Even charges fully depleted batteries.

• Engine run detection protects the starter battery.

• Adjustable current limits to meet Euro 5/6 requirements.

• Voltage stabilization protects sensitive equipment, lights and loads.

• Parallel operations to obtain charging capacities of well over 100 Amps.

• MasterBus, CZone and NMEA 2000 are compatible for intelligent system monitoring and automation.

• Temperature compensation and voltage sense for an optimal charging result.

• E-Mark/R10 certification for mobile applications.

• Power supply mode offers stable power for sensitive loads.

• Heavy-duty connections for easy installation and quick set up via DIP switches.
