Control panel WWCP 12/24V

AED 1,900.00 Excl. tax

Stock Status: In stock

EEPN 04.04.0005 | OEM WWCP
document-text

Description

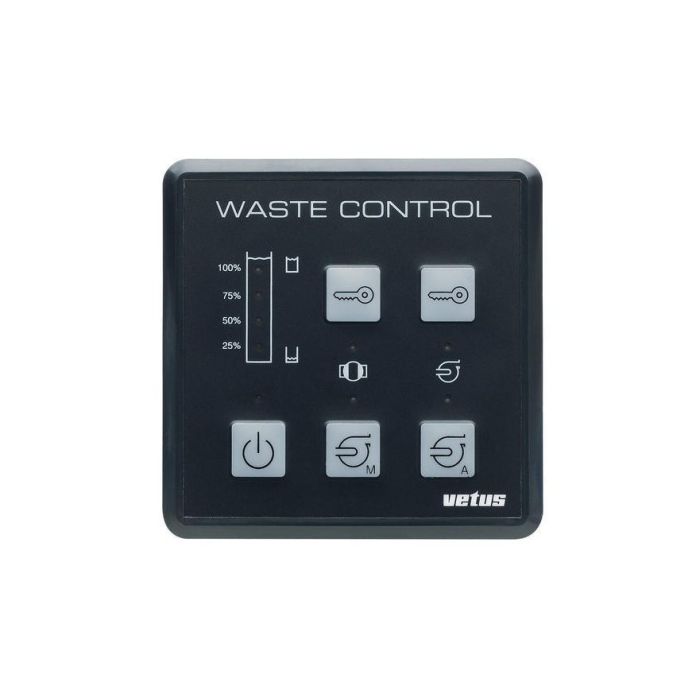

WASTE WATER CONTROL PANEL
WWCP
This waste water control panel provides total management of the holding tank system. It indicates the contents level in the tank and controls the pump out.
This waste water control panel provides total management of the holding tank system. It indicates the contents level in the tank and controls the pump out, either automatically or manually. The panel is connected to a VETUS level sensor in the tank. It then indicates by means of LEDs, when the tank is 25%, 50%, 75% or 100% full. When the tank is completely full, the LED will flash.
The control panel has a security lock, which prevents the pump from being activated accidentally or without permission. Once the correct code is entered, the pump can be operated fully automatically or with manual override. If the “auto” function is selected, the pump will discharge the tank automatically once it is completely full. A switched outlet on the panel can also be connected to a relay in the toilet control circuit. Therefore, if the tank is full and remains full, it is possible to prevent the toilet from being flushed further.
The panel can also be connected to a remotely controlled ball valve which will open before the pump starts. In this case a LED indicates when the valve is closed. Once the tank is empty, the pump will switch off automatically, in order to prevent dry running. To prevent cycling on and off due to movement of the boat, the tank must register full for a while before the pump out commences.
The waste water control panel is supplied without pump, valve or level sensor.

cog

General Specification

• Ball valve stainless steel (AISI 316)
• Valves are resistant against the influences of petrol and diesel fuels
• The G-threading meets the requirements of ISO 228-1 and ISO 9093-1
• Powerful motors with a maximum torque of 40Nm or 220Nm
• Ignition protected
• Actuator housing IP67, die cast aluminium and powder coated
• Simple manual override
