Control 1 interface CZone
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
CZone Control 1 Interface

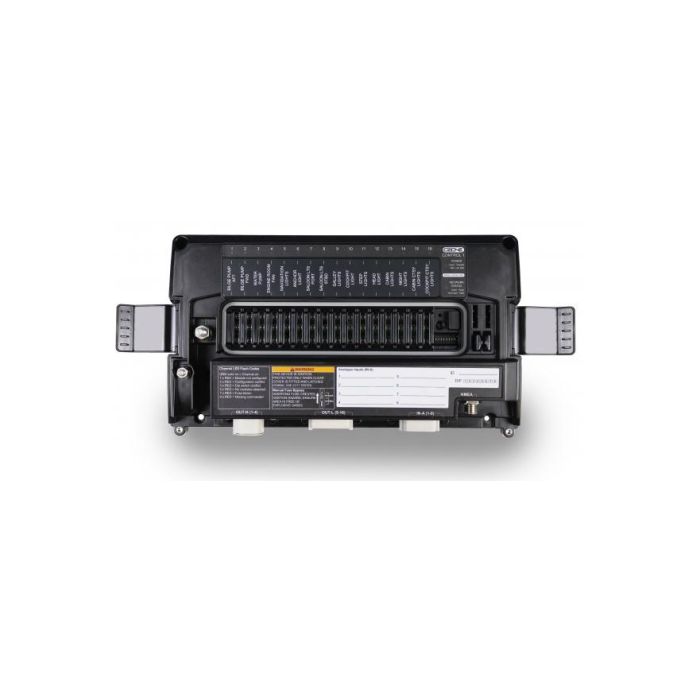

The Control 1 Interface combines multiple input and output devices into one module. This minimizes time and effort during installation by reducing connections between multiple modules and the footprint required. The Control 1 Interface incorporates many of the core features and benefits of the fully featured Combination Output Interface (COI), but has been re-engineered to offer improved cost-per-channel value. The Control 1 Interface features the same rugged design as the fully featured COI with IPx5 water ingress protection and complete mechanical fuse and bypass on all circuits. Industry standard Deutsch connectors provide reliable plug and play installation.
Control 1 Interface builds onto CZone’s portfolio of leading digital control and monitoring products. Delivering only the essential features required for small systems, the Control 1 Interface increases affordability and ensures the benefits of CZone are accessible to a wider range of applications than ever before.
General Specification
|
Output channels (high) |
4 x 25 A |
|
Output channels (low) |
12 x 10 A (dimmable) |
|
Analogue inputs |
8 inputs (positive or negative switching, 0-32 V), 0-1000 Ohm resistance, 4-20 mA current |
|
Communication protocol |
NMEA 2000 |
|
NMEA 2000 PGN output |
fluid Level, pressure, temperature, battery voltage |
|
Circuit current monitoring |
no |
|
Circuit protection |
ATC fuse with fuse tripped & fuse in bypass alarms |
|
Additional monitoring |
1x voltage sense on main positive stud |
|
Circuit bypass |
mechanical protection / bypass all output channels |
|
Max. continuous current |
150 A at 40 °C / 104 °F (derating > 40 °C / 104 °F) |
|
Connectors |
Deutsch |
|
Power supply |
M8 (5/16”) stud positive, M6 (1/4”) stud negative |
|
Supply voltage |
9-32 V (with power available LED) |
|
Bilge pump circuits |
4 high current channels: integrated manual control and 'pump running' detection |
|
Protection degree |
IPx5 (mounted at 0° +/- 90°) |
|
Dimensions hxwxd |
339 x 194 x 65 mm |
|
Weight |
1.9 kg |
|
Approvals |
CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected |
|
Power consumption |
operating (all channels On) = 100 mA at 13.2 V / operating (all channels Off ) = 75 mA at 13.2 V |
