Panel 904NM 12V 16 breaker square mount
AED 2,571.00
Excl. tax
Excl. tax
Stock Status: In stock
EEPN 08.11.0240
|
OEM 904NM
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

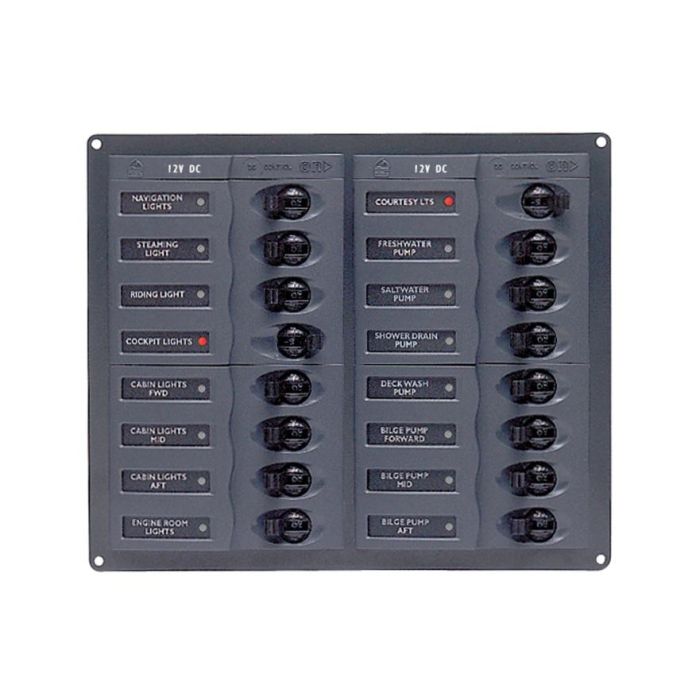

DC Panel - 16-Way -Square
Part # 904NM
• Red systems on LED 12V
• Marine grade powder coated aluminium
• ABYC standard voltage indication
• Green LED backlit labels
• Stylish clip on contour fascia
• Label sets and buss bar supplied with panels.
• Cutout size - ⅜” (10 mm) inside all external edges.
General Specification
| Model | No. of circuits | Max.amp | Negative bus | Direction | H x W x 65 (mm) | Label sheet |
| 904NM | 16 | 160/bus | 12 way | Square | 200 x 239 | 1 |
| CB’s - single pole | |||||
| 5 | 10 | 15 | 20 | 25 | 30 |
| 4 | 5 | 5 | 1 | 1 | - |
Cutout size - ⅜” (10 mm) inside all external edges.
