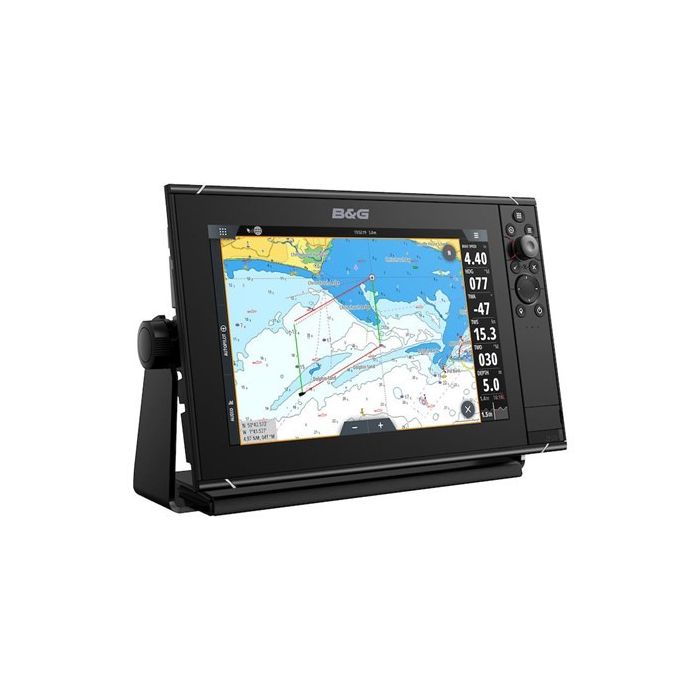

Zeus 3S 12" Chartplotter
Description
The Zeus 3S 12” is the ultimate superfast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 12-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
Key Features
-
The fastest / most responsive sailing chartplotter and navigation display yet
This chartplotter represents the pinnacle of speed and responsiveness in sailing navigation technology. Its advanced processing power ensures quick data updates and smooth operation, which is crucial for dynamic sailing environments. This responsiveness enhances decision-making and overall sailing efficiency. -
SolarMAX IPS Screens
The display features SolarMAX IPS technology, providing exceptional visibility from all angles, whether you're wearing polarized glasses or not. This best-in-class screen technology ensures that the display remains clear and readable in various lighting conditions, whether you're under direct sunlight or in low light. -
Connects to B&G’s performance network modules
The chartplotter integrates seamlessly with B&G’s performance network modules, including Halo Radar, Autopilot, ForwardScan™, NMEA 2000, and 0183. This connectivity ensures that all your navigation and performance data is centralized and accessible, delivering ultimate offshore performance and control. -
Full suite of sailing features
It includes a comprehensive range of sailing-specific features, such as Sailsteer, PredictWind, RacePanel, LayLines, and SailingTime. These tools provide detailed sailing information and analytics, helping sailors optimize their performance and strategies on the water. -
Up to 6-Way information panel split on the display
The display supports up to a 6-way information panel split, allowing users to view multiple data sources simultaneously. This feature enhances situational awareness by presenting critical information in a customizable layout, tailored to your specific navigation needs. -
Built-in Wi-Fi
The chartplotter includes built-in Wi-Fi, enabling easy connectivity with smartphones, tablets, and internet hotspots. This connectivity allows for seamless updates, remote control, and integration with various applications and devices, enhancing the overall user experience and functionality.
General Specification
| Part Number | 10.15.0608 |
| Display | |
| Backlight Color | White |
| Display Resolution | 800 x 1280 |
| Screen Brightness | 1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Connectivity | |
| Bluetooth | Internal |
| Ethernet Ports | 2 x 5 pin yellow connector x 10/100 Mbit |
| Connectivity Wi-Fi | Internal |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | No |
| SD Card Storage | 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
| Video | 2 x composite (RCA connectors) video inputs. Optional video/data cable required (P/N 000-00129-001) |
| Autopilot | |
| Manoeuvres | Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Steering Modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV. (Boat type set to Sail) |
| Approvals | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.2 |
