Wiper control CT3N for 3 wipers 12/24 suitable for MD1, MD2, HD1, HD2 wipers

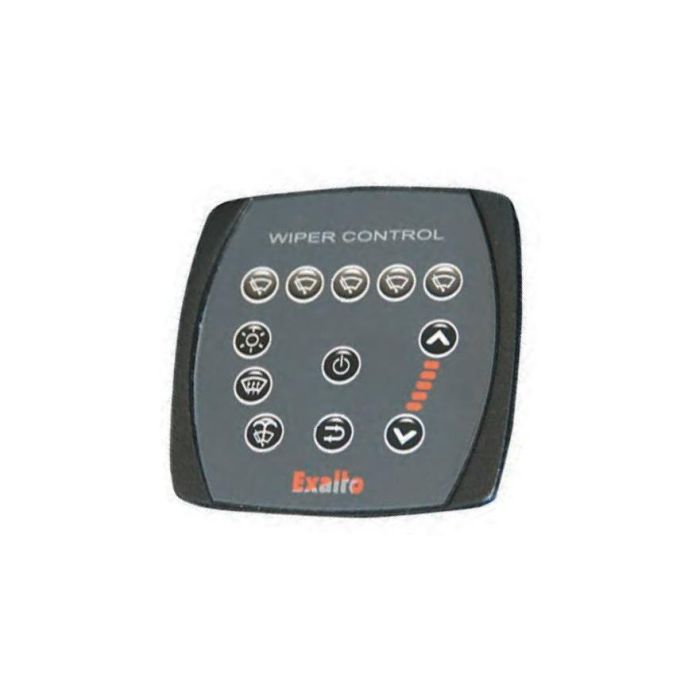

Multivolt Wiper control panel for max 3 wipers
Latest electronic multivolt (12/24v) wiper control for up to five Exalto wipers.
Now with a modern and sleek design and new extra features like:
• single sweep button
• back light dimmer (three level brightness and colour change)
Extra output switch for control of heated windows, window blowers or heated water jets (additional programming required per project).

Further you will find the basic features as CT2N series. Wipers can be switched individually or in any combination.
The complete wiper control consists of one flush mount panel, one
junction box and a 5 m connection cable to connect the panel to the junction box.

The wiper control offers two continuous speeds, three step intermittent wipe and a wipe/wash feature.
In all speed modes wipers run synchronized and are self-parking as standard.
LED indicators on the panel indicate the selected speed setting.

The new style panel also has lost the use of visible fixing screws per corner and now uses a locking ring on the underneath of the console.
Easy installation required 1 clearance hole of 90mm diameter.
Additional panels can be integrated to the control system.
More number of wipers can also be operated via this new system with window grouping possible.
