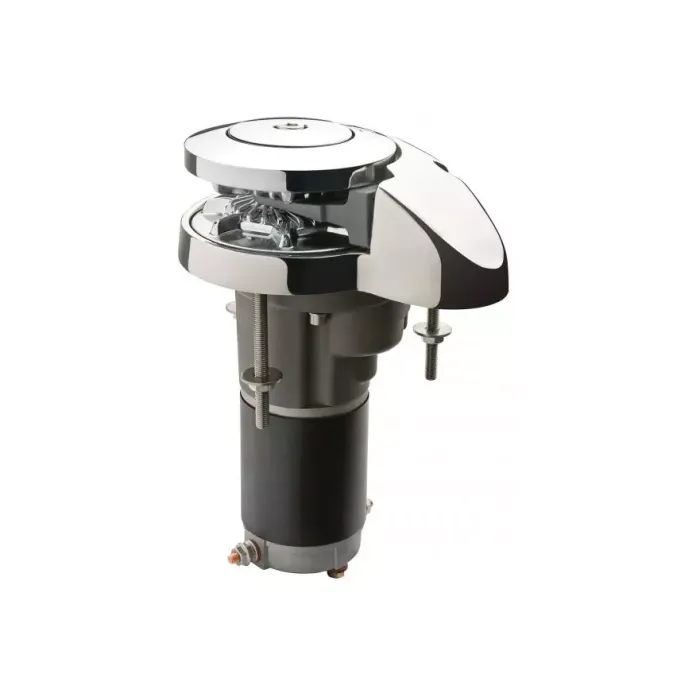

Windlass RC6 Vertical - Low Profile, 24V, 500W, 350 kg Max Pull, 6-7mm Chain, CW

Maxwell
AED 5,499.00 Excl. tax

Stock Status: Out of stock

EEPN 01.01.0002 | OEM P102570
Windlass RC6 Vertical - Low Profile, 12V, 500W, 350 kg Max Pull, 6-7mm Chain, CW
Windlass RC6 Vertical - Low Profile, 12V, 500W, 350 kg Max Pull, 6-7mm Chain, CW
EEPN: 01.01.0001
AED 5,499.00
In Stock

Download Document

User Manual
Selection Chart Guide
document-text

Description

Description

  • The all-new stainless steel RC6 utilizes 6mm/7mm (1/4”) chain spliced to 12mm (1/2”) three strand or 8-plait rope.
  • The revolutionary, and patented, new Wave Design &Trade; chain wheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC6.
  • Providing most of the features of the larger RC8, the RC6 has been designed with the smaller, trailer boat market in mind.
  • The in-line, vertical gearbox and motor means quick and easy installation by either the boatyard or the DIY aftermarket customer.
  • An inexpensive, high performance and great looking windlass: the RC6 is built for durability and years of trouble-free use.
cog

General Specification

Model RC6
Maximum pull 350 kg (770 lbs)
Chain short link 6 mm
Static hold 700 kg (1540 lbs)
Rope size (nylon)* (3 strand or 8 plait recommended) 12 mm or ½"
Chain speed (anchor retrieval) 24 m/min or (79 ft/min)
Power supply (dc) 12 V or 24 V
Motor power 500 W
Net weight 8.5 kg (42 lbs)

Every Maxwell RC6 automatic rope/chain windlass includes motor/ gearbox and reversing solenoid. Other electrical accessories need to be ordered separately.
