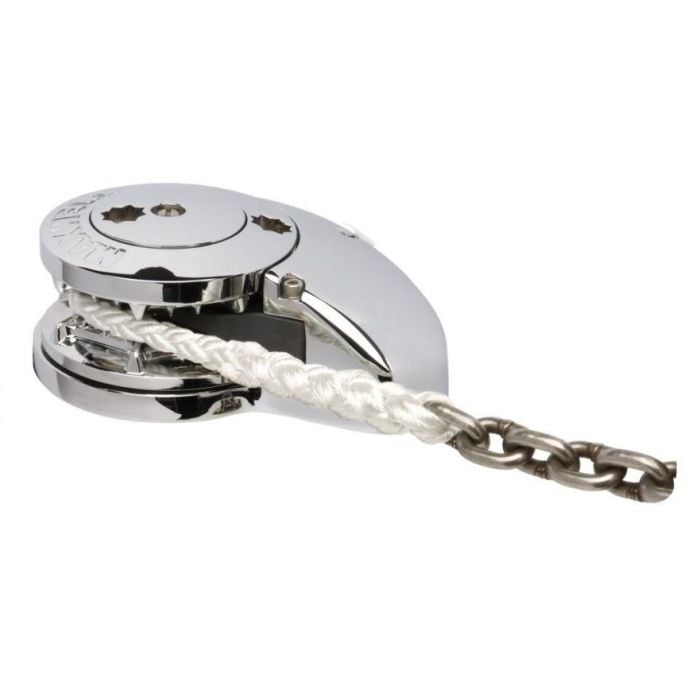

Windlass RC12HD-12 Vertical - Low Profile, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 100mm TDC, CW

Maxwell
AED 31,259.00 Excl. tax

Stock Status: In stock

EEPN 01.01.0202 | OEM P104970
Windlass RC12HD-12 Vertical - Low Profile, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 200mm TDC, CW
Windlass RC12HD-12 Vertical - Low Profile, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 200mm TDC, CW
EEPN: 01.01.0204
AED 31,597.00
Out of Stock
Windlass RC12HD-12 Vertical - With Capstan, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 100mm TDC, ACW
Windlass RC12HD-12 Vertical - With Capstan, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 100mm TDC, ACW
EEPN: 01.01.0209
AED 33,048.00
Out of Stock
Windlass RC12HD-12 Vertical - Low Profile, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 100mm TDC, ACW
Windlass RC12HD-12 Vertical - Low Profile, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 100mm TDC, ACW
EEPN: 01.01.0210
AED 31,259.00
Out of Stock
Windlass RC12HD-12 Vertical - With Capstan, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 200mm TDC, ACW
Windlass RC12HD-12 Vertical - With Capstan, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 200mm TDC, ACW
EEPN: 01.01.0211
AED 33,384.00
Out of Stock
Windlass RC12HD-12 Vertical - Low Profile, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 200mm TDC, ACW
Windlass RC12HD-12 Vertical - Low Profile, 24V, 2000W, 1820 kg Max Pull, 12mm Chain, 200mm TDC, ACW
EEPN: 01.01.0212
AED 31,597.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, CW
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, CW
EEPN: 01.01.0217
AED 34,563.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, CW
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, CW
EEPN: 01.01.0218
AED 32,774.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, CW
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, CW
EEPN: 01.01.0219
AED 34,899.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, CW
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, CW
EEPN: 01.01.0220
AED 33,110.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, ACW
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, ACW
EEPN: 01.01.0225
AED 34,563.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, ACW
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 100mm TDC, ACW
EEPN: 01.01.0226
AED 32,774.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, ACW
Hydraulic Windlass RC12HD-12 Vertical - With Capstan, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, ACW
EEPN: 01.01.0227
AED 34,899.00
Out of Stock
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, ACW
Hydraulic Windlass RC12HD-12 Vertical - Low Profile, 49 LPM, 138 bar, 1250 kg Max Pull, 12mm Chain, 200mm TDC, ACW
EEPN: 01.01.0228
AED 33,110.00
Out of Stock

Download Document

nan
Certifications
Datasheet
document-text

Description

Maxwell Windlass RC12HD 24V CW 100 mm TDC 2000W chainwheel only (12-13 mm short link chain) (clockwise)

cog

General Specification

Model RC12 HD, 24V DC Electric (2000W)
Maximum pull 1820kg (4000 lbs)
Continuous pull 300kg (660 lbs)
Line speed at continuous pull 12m/min (39 ft/min)
Working Load limit (10min) 610kg (1335 lbs)
Maximum line speed 18m/min (59 ft/min)
Static Hold 2200kg (4840 lbs)
Net Weight (Capstan Version) 40kg (88 lbs)
Power Supply 24V DC
Motor Power 2000W



Notes:

1. All RC12 HD models are suitable for 12-13mm (1/2”) Chain and 20mm (3/4”) to 22mm (7/8”) Nylon Rope.

2. Reversing solenoid (01.02.0038) to be purchased separately (not included in Windlass).

3. Suitable circuit breaker 135 Amps (01.02.0027).
