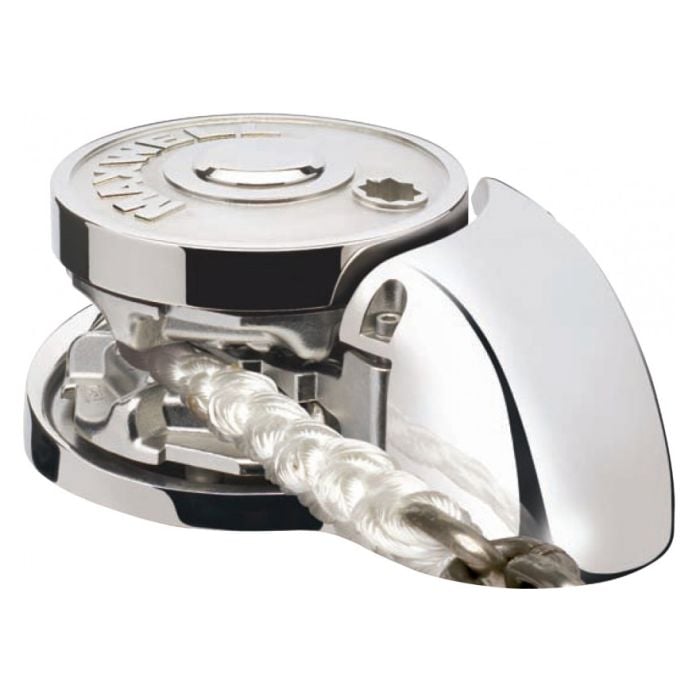

Hydraulic Windlass RC12-10 Vertical - Low Profile, 40 LPM, 138 bar, 1134 kg Max Pull, 10mm Chain, 90mm TDC, CW

Hydraulic Windlass RC12-10 Vertical - Low Profile, 40 LPM, 138 bar, 1134 kg Max Pull, 10mm Chain, 90mm TDC, CW
AED 16,491.80 Excl. tax
35% OFF |
AED 25,372.00

Stock Status: In stock

EEPN 01.01.0021 | OEM P104902
document-text

Description

Maxwell Windlass RC12-10 HYD 90mm TDC CW (clockwise) chainwheel only

cog

General Specification

Model RC12-10 10 mm - 3⁄8”
Maximum pull 1134 kg (2500 lbs)
Static hold 2200 kg (4840 lbs)
Chain short link 10 mm or 3⁄8”
Rope size (nylon)*(Normal working load ) 16-20 mm or 5⁄8” - 3⁄4”
Chain speed 24 m/min or 79 ft/min
Rope speed (anchor retrieval) 20 m/min or 65 ft/min
Power supply (dc) 12 or 24V
Motor power 1200W
Net weight-dc (capstan version) 32 kg
Net weight-dc (low profile version) 29 kg
For Hydraulic version:
Hydraulic pressure 138 bar (2000 psi)
Hydraulic flow  42 lpm (11US gpm)
Net weight - hyd (low profile) 23 kg (51 lbs)
Net weight - hyd (Capstan version) 26 kg (57 lbs)

** When ordering please specify your specific rope and chain size.

Every Maxwell RC12 automatic rope/ chain windlass includes motor/gearbox and reversing solenoid. Other electrical accessories need to be ordered separately. The above models are also available in 190mm TDC (Top deck clearance) in CW (Clock wise) & ACW (Anti clock wise) versions on request.

Note: RC12-10 Suitable for 10mm (3/8”) Chain and 16-20mm (5/8-3/4”) Nylon Rope
