Windlass RC10-8 Vertical - With Capstan, 12V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC, CW

AED 9,530.00 Excl. tax

Stock Status: Out of stock

EEPN 01.01.0013 | OEM P102573

Download Document

document-text

Description

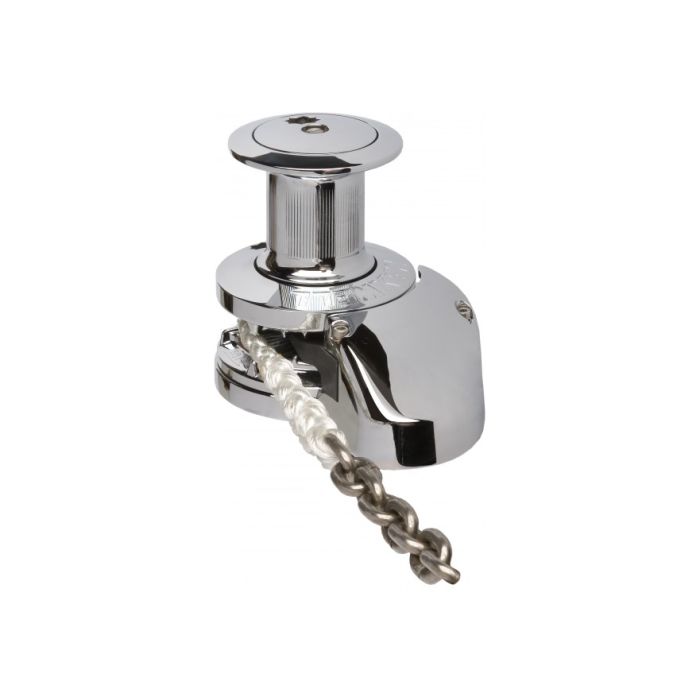

Maxwell Windlass + capstan RC10-8 12V 1000W 100mm TDC CW (clockwise)

cog

General Specification

Model RC10 - 8 8 mm - 5⁄16”
Maximum pull 700 kg (1540 lbs)
Chain short link 8 mm or 5⁄16”
Rope size (nylon)* 14 mm - 16 mm or 9⁄16” - 5⁄8”
Chain speed (Normal working load ) 24 m/min or 79 ft/min
Rope speed (anchor retrieval) 20 m/min or 65 ft/min
Power supply (dc) 12 V or 24 V
Motor power 1000W
Net weight 19 kg (42 lbs)

Every Maxwell RC10 automatic rope/chain windlass includes motor/ gearbox and reversing solenoid. Other electrical accessories need to be ordered separately.

Note: RC10-8 Suitable for 8mm (5/16”) Chain and 14-16mm (9/16"-5/8”) Nylon Rope
