Valve ball position monitored 2" BSP GRP
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

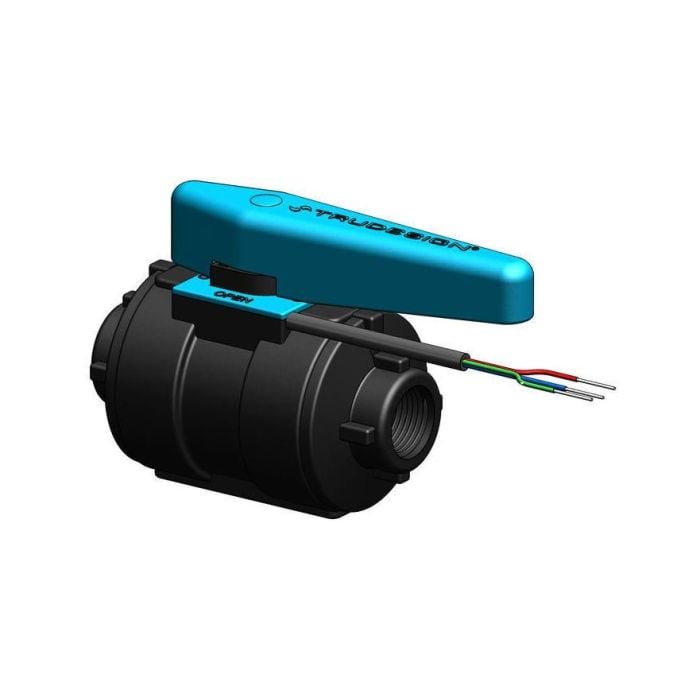

Ball Valve Position Monitored 2” BSP
Internal Diameter: 52
Thread: 2" BSP
Weight: 750g
Designed and made in New Zealand for use in marine applications above and below the waterline, these Ball Valves are IMCI and Bureau Veritas approved to ISO standard 9093-2. They also comply with ABYC H-27 standards. They are ideal for controlling inlet and outlet water requirements.
Position Monitoring allows remote monitoring of Ball Valve Position. The Position Monitoring circuit can also be used as part of an engine or generator start interlock to ensure these don’t start without cooling water available.
The body of the Ball Valve is manufactured in glass-reinforced nylon composite with high impact and tensile strength resulting in a light weight unit, free from corrosion and electrolysis issues. The ball and sealing rings utilise a PTFE polymer to ensure a smooth action, and continuous ease of operation over many years.
The Ball Valve can be locked in the closed position for use on toilet waste outlets.
Note: Ball Valves are supplied with spanner and installation instructions
General Specification
• Manufactured from a glass reinforced nylon composite
• Compatible with all hull types
• Immune to corrosion and electrolysis
• Chemical resistant
• UV resistant
• High quality surface finish
• IMCI approved to the ISO 9093-2 Standard.
• Locking feature
• Ball and seal rings molded in a PTFE filled polymer
• Brightly coloured handle.
• Quality control
• Large operating temperature range
• Spanner supplied
• Voltage 12V dc.
• Remote indication of seacock position
• Engine ignition interlock
• Allows monitoring from accessible location
• Remote indication of multiple seacock positions.
