Valve ball 1" motorized 12V SS316 MV12 series
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

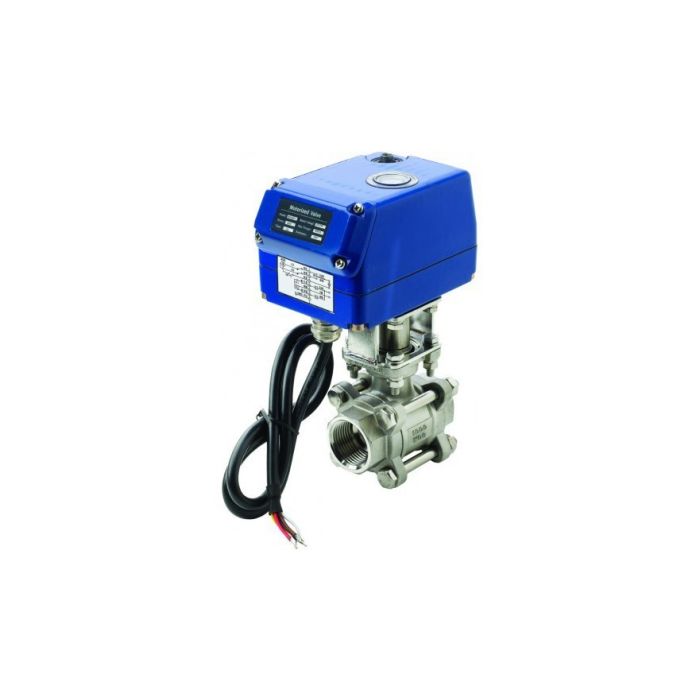

MOTORIZED BALL VALVE
MV12A1
Motorised ball valves are the ideal answer for seacocks in hard to reach places, or simply to increase convenience on board.
With this new line of motorised valves, VETUS introduces a unique product range. The combination of an aluminium casing, metal gears, stainless steel (AISI 316) ball valve, and the extremely high torque (up to 220 Nm!) results in a highly reliable product with numerous applications. Furthermore, the motor is ignition protected and certified to the ISO 8846 Marine standard, for use in the engine room without risk of explosion. Under normal operating conditions, the actuator is lubricated for life, so maintenance is minimal. The motorized ball is supplied with metal transmission and gears, thermal overload protection and it's also suitable for diesel fuel. A Vetus motorised ball valve can be opened and closed remotely using switch ELVPAN12 (12 Volt) or ELVPAN24 (24 Volt) or the wastewater control panel WWCP. These switches and panel are not included.
General Specification
• Ball valve stainless steel (AISI 316)
• Valves are resistant against the influences of petrol and diesel fuels
• The G-threading meets the requirements of ISO 228-1 and ISO 9093-1
• Powerful motors with a maximum torque of 40Nm or 220Nm
• Ignition protected
• Actuator housing IP67, die cast aluminium and powder coated
• Simple manual override
