Transducer Kit Forward Scan LS

Description

ForwardScan uses forward-looking sonar to give you a clear view of the bottom ahead of your boat. This award-winning technology is a powerful defence against running aground in shallow, unfamiliar, or poorly-charted waters. ForwardScan generally offers a forward view of 4–5 times your current depth; for example, in 3 metres (10 feet) of water, see the bottom 12–15 metres (40-50 feet) ahead. Under ideal conditions, ForwardScan can see even further, looking ahead up to 8 times your current depth. The 180 kHz ForwardScan transducer is designed to minimise interference from common 200 kHz transducers, enabling it to be used alongside existing fish-finding or depth-tracking sonar.

Simple 2D View and Chart Overlay
See a simple, immediately understandable view of the bottom ahead. Bottom Colour Tracking shows the bottom as a solid terrain in an uncluttered, side-on picture. For more detail, you can choose to display sonar returns from throughout the water column; these can illustrate other potential hazards such as dock posts. Perfect for cruising, you can also overlay ForwardScan depth data on charts: Heading Line View uses colour-coded segments to represent deep, medium, and shallow water ahead. Depths are customisable to suit your boat’s draught, and a shallow depth alarm helps to ensure you’re never caught unaware.

Easy Installation and Maintenance

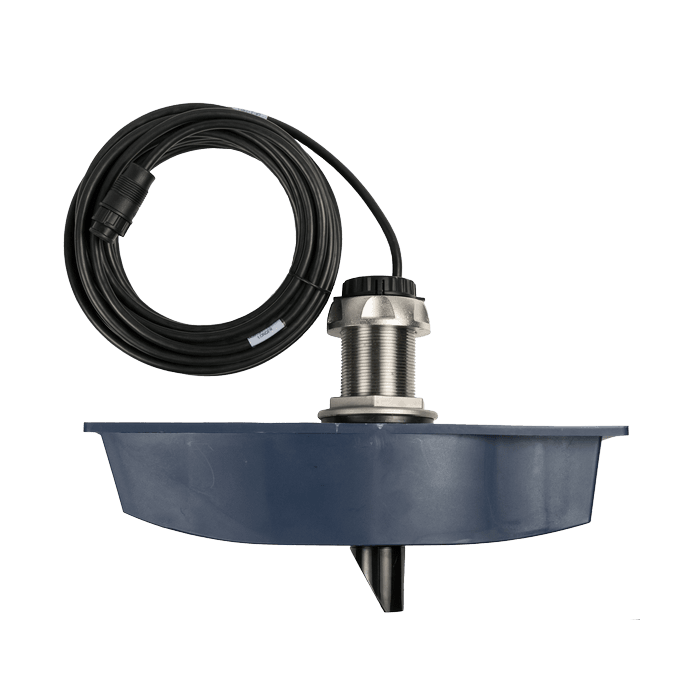

The ForwardScan Long Stem Transducer features an extended stainless steel through-hull sleeve and specially designed fairing block to accommodate hulls up to 47.6 mm (1 7/8 inches) in thickness and up to 28 degrees deadrise. A built-in self-closing valve means the ForwardScan transducer can be inserted and removed from the sleeve while on the water, allowing quick and easy transducer maintenance.

Key Features
•    Simple 2D view of the bottom ahead
•    Navigate safely with ForwardScan data overlaid on charts
•    Look ahead up to 8 times your current depth (generally 4-5 times)
•    Designed to minimize interference from existing 200 kHz transducers
•    Built-in water temperature sensor offers extra value
•    Easy installation and maintenance with an on-water removable transducer
•    Connects to the StructureScan® HD port on compatible displays or sounder modules
•    Long-stem design to accommodate thick or steeply-inclined hulls
