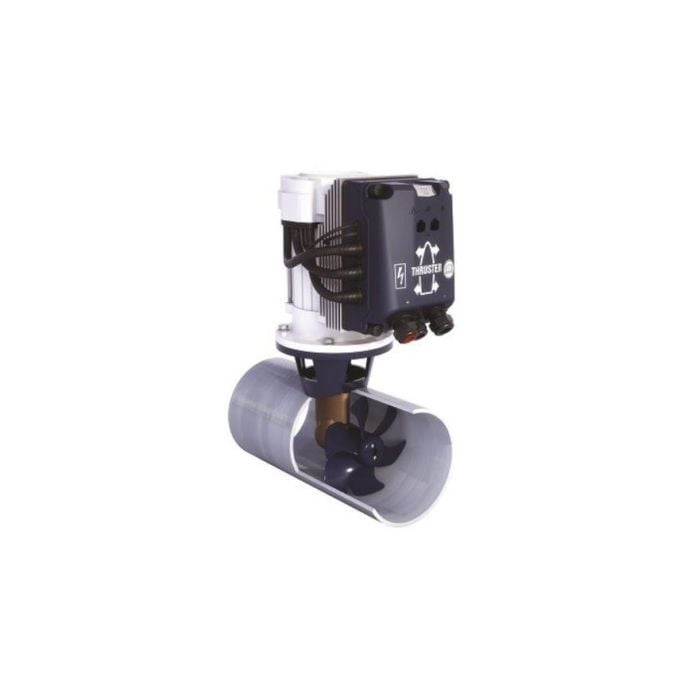

Thruster BOWB210 210kgf 24/48V tunnel dia.250mm

Vetus
AED 39,324.00 Excl. tax

Stock Status: In stock

EEPN 06.07.0105 | OEM BOWB210
Thruster BOWB130 130kgf 12/24V tunnel dia.185mm
Thruster BOWB130 130kgf 12/24V tunnel dia.185mm
EEPN: 06.07.0094
AED 29,780.00
Out of Stock
Thruster BOWB076 76kgf 12/24V tunnel dia.185mm
Thruster BOWB076 76kgf 12/24V tunnel dia.185mm
EEPN: 06.07.0091
AED 19,194.00
Out of Stock
Thruster BOWB180 180kgf 24/48V tunnel dia.250mm
Thruster BOWB180 180kgf 24/48V tunnel dia.250mm
EEPN: 06.07.0104
AED 35,595.00
Out of Stock
Thruster BOWB065 65kgf 12/24V tunnel dia.185mm
Thruster BOWB065 65kgf 12/24V tunnel dia.185mm
EEPN: 06.07.0090
AED 16,879.00
Out of Stock
Thruster BOWB150 150kgf 12/24V tunnel dia.250mm
Thruster BOWB150 150kgf 12/24V tunnel dia.250mm
EEPN: 06.07.0095
AED 32,883.00
Out of Stock
Thruster BOWB110 110kgf 12/24V tunnel dia.185mm
Thruster BOWB110 110kgf 12/24V tunnel dia.185mm
EEPN: 06.07.0093
AED 27,468.00
Out of Stock

Download Document

User Manual
document-text

Description

Thruster BOWB210 210kgf 24/48V tunnel dia.250mm Optimal tunnel length is 500-1000mm Maximum tunnel length is 1500mm both the measurements taken at bottom end of the tunnel.

Bow thruster brushless proprtional 210 Kgf 24/48V in 250mm tunnel with extended runtime.

cog

General Specification

Part number 06.07.0105
Model BOWB210
Thrust in N (kgf) (power output) 2000 (210)
Power kW 11 kW (24V)
Brushless induction motor ✓
Tunnel diameter, internal, mm 250
Weight excl. tunnel, in kg 37
Volt (dc) 24/48V
Current consumption, Amps. 213
Operating time:
• continuously at maximum thrust, in minutes
• at reduced thrust
10
Endurance rated
Main fuse ZE355 (355 Amps)
Batteries 12 Volt D.C., min. Ah 4 x 200
Battery main switch, model BATSW 250
