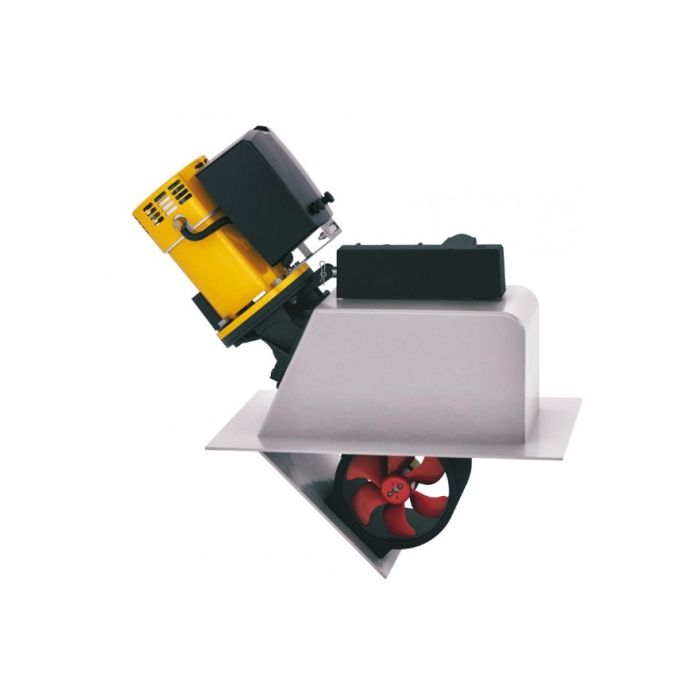

Thruster Bow Retractable 55 kgf 12V tunnel Dia. 150 mm
Download Document
Description
Swing (Retractable) thruster electric, 55 kgf 12 V
Easy docking, no drag, less noise
Even for the more experienced skipper, it can be difficult to manoeuvre the boat in harsh wind conditions and strong currents. The new line of retractables VETUS thrusters can be placed in shallow parts of the hull and will not disturb its smooth lines. This low drag solution will make your docking experience easier, faster and just plain more enjoyable.
A retractable thruster has the following advantages
Optimum forward placement in the bow, while maintaining depth by deployment
Less noise and vibration as it is not directly connected to the hull
Optimum tunnel length with minimal losses
Virtually no marine growth, as there is no light when thruster is in retracted and closed position
May be placed in the stern in (both sailing and motor) boats where it is not possible to install a tunnel thruster
Less drag as the lid is flush to the hull
Small dimensions
Suitable for power vessels up to 20 metres
General Specification
| Part number | 06.07.0056 |
| Model | STE5512D |
| Voltage (V) | 12 |
| Thrust (N/kgf) | 550/55 |
| Power (kW) | 3 |
| Motor, reversible D.C. | √ |
| Tunnel diameter, internal (mm) | 150 |
| Weight (kg) | 26 |
| Current consumption (A) | 350 |
| Operating time (min.) | 4 |
| Main fuse, "slow blow" (A) | 250 |
| Batteries 12V min./max. (Ah) | 1x105/1x200 |
| Battery cables, length plus/min cables (m/mm²) | 0-12/70 |
| Battery main switch model BATSW | 250 |
| Dimensions, closed: H x L x W (mm) | 291 x 703 x 262 |
| Dimensions, opened: H x L x W (mm) | 380 x 625 x 262 |
