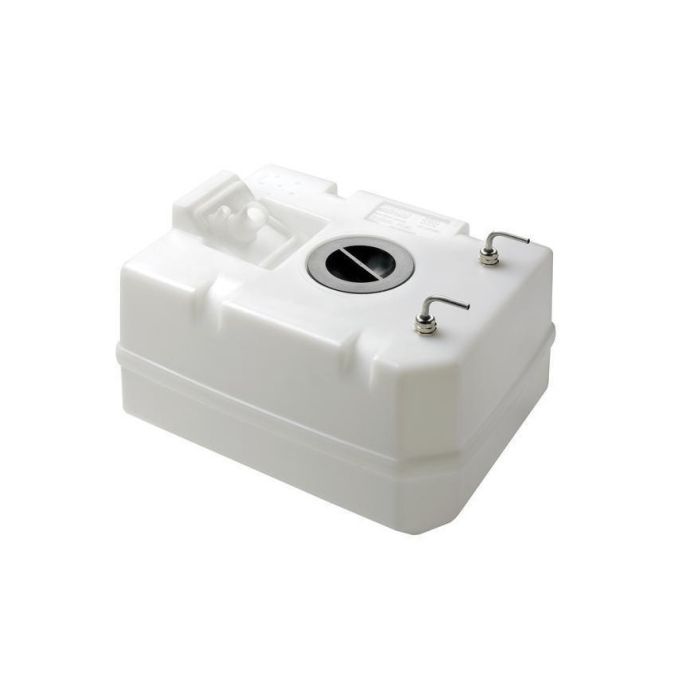

Tank diesel 80L plastic with 8mm fuel hose fitting

AED 1,876.00 Excl. tax

Stock Status: Out of stock

EEPN 04.03.0056 | OEM FTANK80A

Download Document

document-text

Description

Diesel fuel tank with connections, 80L
FTANK80A

Made from high grade linear polythylene. Fixed connectors 38 mm for filling and 16 mm for the breather line. Rotating hose and suction connectors 8 mm.
This tank is designed for diesel fuel. The center point for an SAE flange gauge sender is incorporated in the moulding together with 5 blind bolt holes.
The relevant gauge sender should be ordered separately and the appropriate hole cut in the tank.
This tank will save considerable installation time.

Each tank is supplied with the following connections:
- Fixed hose connector Ø 38 mm for filling.
- Fixed hose connector Ø 16 mm for the breather line.
- Rotating hose connectors Ø 8 mm with pick-up pipe for fuel suction.
- Rotating hose connectors Ø 8 mm for fuel return.

cog

General Specification

EE Part number 04.03.0056
OEM part number FTANK80A
Capacity (Ltr) 80
Dimensions LxWxH (mm) 892x362x347
Material Synthetic
Type of tank Rigid
Fuel hose connection diameter (mm) 8
