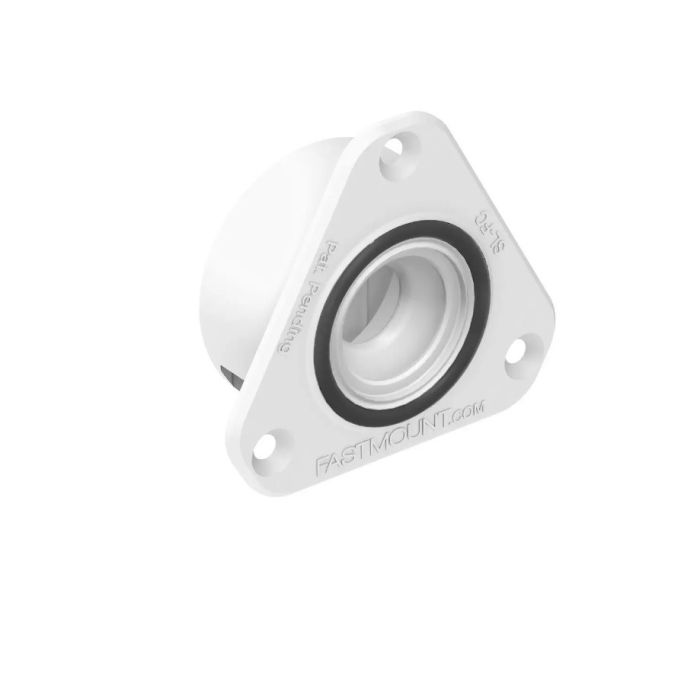

Stratlock SL SL-FC female flush mount white acetyl with rubber o-ring

Description

The SL-FC / SL-FC-FR provides rapid installation of heavy panels to solid substrates. Designed specifically for contract interior fitout applications to reduce onsite installation time. The SL-FC is ideal for applications where framework or grid structure is not available (e.g. sheet metal, aluminium, fibreglass, MDF or plywood). SL-FC fits into a pre-drilled Ø40mm hole, and screw fixes with 3 x #5 screws. The Patent Pending internal load chassis of the female clip creates 4mm supported movement of the panel in any direction before locking into place with a 10 or 18kg pull out load, depending on the male clip used (SL-M10 or SL-M18). Distance between panel and substrate when installed is 10.5mm at first click, and 7mm when pressed into final position. Patent Pending.

Benefits
• Strongest available fixing from Fastmount
• Flush fit for solid substrates
• Supported movement of the panel 4mm in any direction before locking into final position.
• No special tools required for installation
• Acoustic isolation between panel and frame
• Option of 10kg or 18kg pull out load with SL-M10 or SL-M18
• 7mm clearance between panel and frame

Applications
• Commercial interior fitout
• Residential interior fitout
• Architectural applications
• Mounting heavy wall panels
• Aluminium, sheet steel, fibreglass, plywood or MDF substrates
