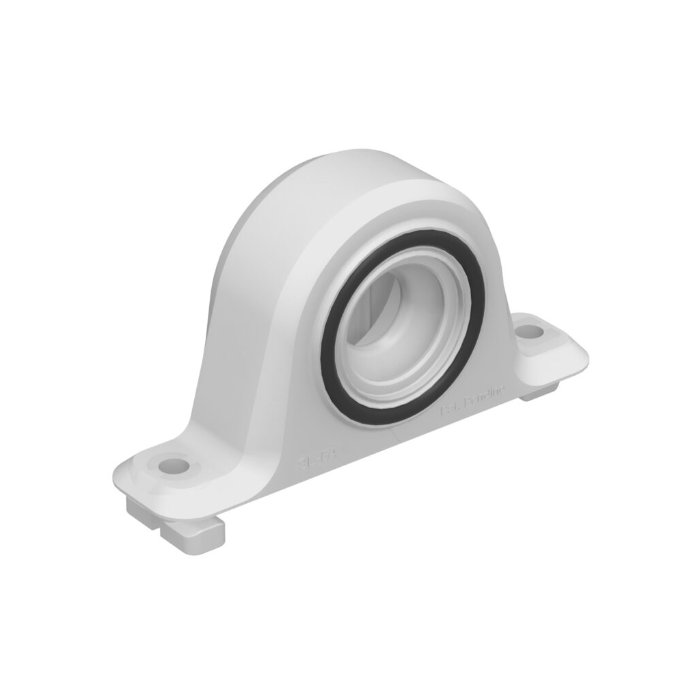

Stratlock female SL-FA-FR fire rated side mount in white acetyl with rubber o-ring

Description

The SL-FA provides rapid installation of heavy panels into sidechannel aluminium extrusion framework, with a fire-rated option available as the SL-FA-FR. Designed specifically for contract interior fit out applications, the SL-FA / SL-FA-FR is also suitable for superyacht deckhead panels. Female installs rapidly with a twist-lock function into the side channel, and can be screwed or riveted into its final position. Used with the SL-M18 / SL-M18-FR, the new solid internal load chassis creates 4mm supported movement of the panel in any direction at the first engagement before locking into place with a 18kg pull out load. Patent Pending. Fits into channel dimensions: mouth: 7.5mm - 8.5mm, depth: min 7mm, wall thickness: 0.75mm - 1.2mm. The distance between the panel and substrate when installed is 10.5mm at the first click, and 5mm when pressed into final position.NB: specific channel types will vary throughout regions, please use dimensions to determine suitability.

Benefits
• Strongest available mounting from Fastmount
• T-lock function for rapid installation into channel with screw or pop rivet
• Supported movement of the panel 4mm in any direction before locking into final position.
• No special tools required for installation
• Acoustic isolation between panel and frame
• Designed for aluminium extrusion
• 18kg pull out load with SL-M18
• 5mm standoff between frame and panel
• Adjustability along channel for easy spacing - no drilling required

Applications
• Commercial interior fit out
• Architectural and marine applications
• Mounting heavier ceiling and wall panels
• Hotels, hospitals, retail
• Residential fitout
• Superyacht deckhead panels
