Steering kit (reinforced) GF350HD for 350HP outboard engine

Mavi Mare
AED 4,494.00 Excl. tax

Stock Status: In stock

EEPN 06.01.0135 | OEM GF350HD

Download Document

Brochures
document-text

Description

Reinforced hydraulic steering for kit with lateral mounting hoses for OB engines up to 350HP
GF350HD

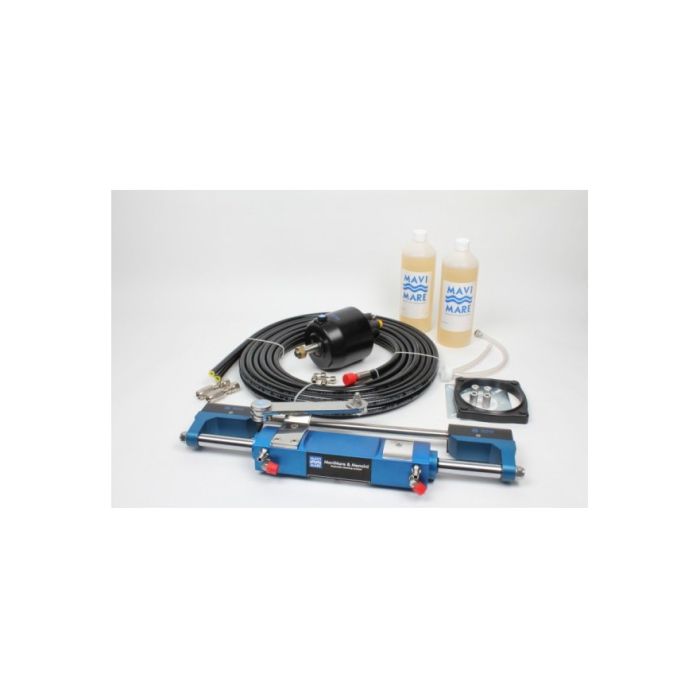

Kit comprises of :
- GM2-MRA01 pump + MC350HD cylinder + brass fittings (1 kit GTN7x10916+ 1 Kit AC38/T916 )+  2 lt. oil hydraulic + 15 mt (2 x 7.5) SAE100 R7 5/16 hose.
- Turns head to head 5.2
- Suitable for up to 350 hp or a couple of 350 hp (700 hp) engine with counter rotating propellers.
- All the system an not intended for racing boat.
- Steering system kit supplied with 2 hoses of 7.5m each ,with fittings pressed on one end.

Cylinder technical features :
- Frontal mounting balanced cylinder "bullhorn" type.

Parts which make up the complete kit and can be ordered separately.
EE Part number OEM part# Description
06.01.0120 GM2-MRA01 Pump
06.01.0136 MC350HD Reinforced cylinder frontal mounting bull horn type.
06.01.0110 X.372 Connection filler tube kit
06.01.0111 H-AP51 Hydraulic oil
06.01.0128 SAE10038 Kit comprises of 2 HP 5/16” nylon hoses with fittings (2 x 7.5 m hose).



Cylinder details:
Volume (cm³) 140
Stroke (mm) 198
Ø rod shaft (mm) 22



Pump details:
Capacity (cc) 27
No. of pistons 7
max pressure (bar) 70
Weight (kg) 3.7



cog

General Specification

For 2 engines & 1 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0137 358.08 Tie bar SS 316
06.01.0138 X.377 Plate SS 316



For 2 engines & 2 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0141 358.07 Tie bar SS 316
06.01.0134 X.351 Hose kit
06.01.0160 MC350HD2 Cylinder for twin engine installation



For 3 engines & 2 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0137 358.08 Tie bar
06.01.0133 X.376 Center engine plate SS 316
06.01.0134 X.351 Hose kit
06.01.0132 358.08R Tie bar reverse SS 316
06.01.0160 MC350HD2 Cylinder for twin engine installation
