Spotlight 24V 100W white including wireless remote SPLR-2 (09.01.0132)
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

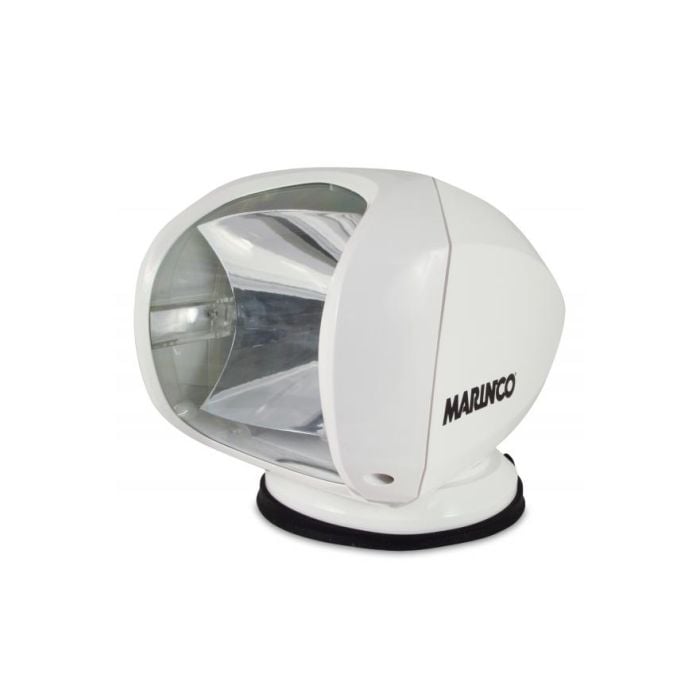

Precision Spot Light, 24 Volt, 100W, White, OEM
SPL-24W.OEM
The innovative Marinco Precision Wireless Controlled Light addresses the most common issues found in marine-grade spotlights.
In doing so it has become the most versatile, durable, consistent and easy-to-use spotlight on the market.
Its unique, totally enclosed housing design protects all critical components from moisture, salt, shock and vibration for long-lasting operation.
Whether mounted upright or suspended upside down, you get 370 deg sweep rotation and 120 deg tilt (75 deg up, 45 deg down) in a durable IP56 weatherproof housing.
Inside, a brilliant 100 Watt H3 Halogen lamp with an optimized parabolic reflector pierces the ultra clear lens to provide a consistent light pattern.
Replaceable 100W, H3 halogen lamp
Double O-ring sealed housing
Dual-speed, ultra-quiet motor
Easy snap-in mount system
Polished Lexan® lens
White, black and chrome finishes
General Specification
| EE part number | 09.01.0188 |
| OEM part number | SPL-24W.OEM |
| Bulb | 100 Watt, H3 Halogen |
| Power (Input voltage) | 24V |
| Current draw (idle/in use) | 0.03 Amps / 7.0 Amps |
| Peak Beam Intensity | 210,000 Cp |
| Peak Beam Distance | 917 ft (280 m) |
| Lux @ 66' (20 m) | 525 Lux |
| Coverage at 66' (20 m) | 132 sq ft (12 sq m) |
| Rotation | 370° (built in limit stops) |
| Tilt | 120° Tilt (75° up & 45° down) |
| Wireless range | 200 ft (65 m) |
| Dimensions | 7.5"W x 7.5"H x 9.25"D (19 x 19 x 23.5 cm) |
| Weight | 3.30 lbs (1.5 kg) |
| Housing material | UV resistant PC/ASA |
| Lens material | UV resistant Lexan® |
| operating temp range | 5°F–113°F (-15°C–45°C) |
| IP Rating | IP56 |
| Colour | White |
Details of control included with light
| Part number | 09.01.0132 |
| Remote Specifications | Wireless Bridge Remote |
| Power | 12 or 24 volt (hard wired) |
| Current draw (idle / in use) | negligible |
| Wireless range | 200 ft (65m) |
| Dimensions | 3.5"W x 2.25"H x .75"D |
| Weight | 2.12 oz (60g) |
| Housing material | UV resistant PC/ASA |
| Button material | Silicone (glow in the dark) |
| Operating temp range | 5°F–113°F (-15°C–45°C) |
| IP Rating | IP54 |
