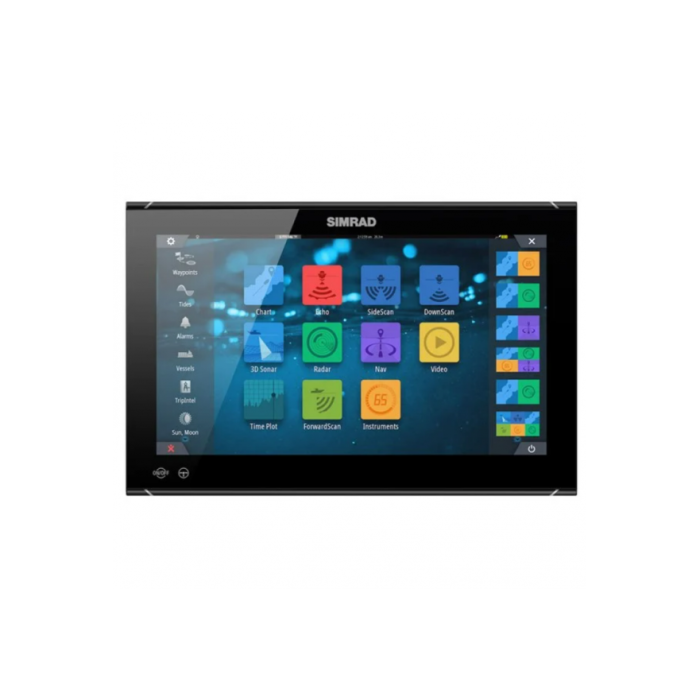

SIMRAD NSO EVO3S 19" DISPLAY ONLY 000-15049-001 SIMRAD NSO EVO3S 19" DISPLAY ONLY
Build your ultimate navigation system around NSO evo3S MFD. The iMX 8 high-performance processor ensures rapid responses to your every command, while the Full HD display gives you stunning clarity. Connect with GPS, radar, sonar, keypad controllers and other accessories to create your ideal vessel-wide system.
Key Features
- iMX 8 Integrated six-core processor for superior performance
- Ultra-sharp, Full HD display
- Seamless touchscreen control of your entire connected SIMRAD® system
- Low-profile glass helm styling
- Extended visibility with six-panel split screen option
- Connect with smartphones, tablets, and internet hotspots
- Integrate with an extensive range of 3rd party technologies
Supreme Performance
Every NSO evo3S display features a iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic.
Ultimate Clarity with Intuitive Touchscreen Control
NSO evo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.
Fully Connected
Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, and integration with an extensive range of 3rd party technologies.
General Specification
Physical
| Dimensions 16" WxHxD | 400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27") With bracket: 474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76”) |
| Dimensions 19" WxHxD | 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27“) With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45“) |
| Dimensions 24" WxHxD | 625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27“) With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37“) |
| Weight 16" | 3.9 kg (8.6 lbs.) |
| Weight 19" | 4.8 kg (10.5 lbs.) |
| Weight 24" | 7.8 kg (17.2 lbs.) |
| Compass safe distance | 50 cm (19.7") |
| Mounting options | Panel or bracket mount (use optional heavy duty bracket (000-13547-001) |
Environmental
| Operating temperature range | -15°C to +55°C (5° F to 131° F) |
| Storage temperature range | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX6 on the font (when panel mounted correctly with only the front exposed). Rear not waterproof Shock|CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
Electrical
| Supply Voltage | 12/24 V DC (10 - 31.2 V DC min - max) |
| Power consumption (max) 16" | 40 W +- 4 W |
| Power consumption (max) 19" | 50 W +- 4 W |
| Power consumption (max) 14" | 80 W +- 4 W |
| Fuse rating 16 | 6 A @ 12 V DC |
| Fuse rating 19 | 7 A @ 12 V DC |
| Fuse rating 24 | 10 A @ 12 V DC |
Connectivity
| Ethernet | 3 x RJ 45, 1 Mbit ports. Adapt to 5 pin yellow using Adapter cable 000-11246-001 |
| Wireless | Internal 802.11b/g/n |
| NMEA2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| J1939 | 1 x J1939 Micro-C port |
| NMEA 0183 | 2x NMEA0183 (IEC61162-1), 2x NMEA0183-HS (IEC61162-2) |
| NMEA 0183 Sentences | Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000) Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM |
| Composite Video In | 2x composite video (BNC) |
| HDMI In | 1x high definition video (1080p, HDCP 1.4, HDMI-A) (Note: will not pass through HDMI, HDCP from HDMI input port) |
| Internal GPS | No |
Storage
| External storage | 1 x Micro SD card slot or use optional USB dash mount card reader with 2 x Micro SD slots. Max. card size 32GB. Larger if formatted to NTFS |
Internal storage: 16GB
Display
| Screen resolution (all sizes) | 1920x1080 |
| Brightness | 1200 nits |
| Screen size and type 16 | IPS 15.6" optically bonded TFT |
| Screen size and type 19 | AHVA 18.5" optically bonded TFT |
| Screen size and type 24 | MVA 24" optically bonded TFT |
| Viewing angles | 80° top/bottom, 80° left/right |
| Control | Full touch screen (multi-touch), OP50 remote controllers |
Applications
| Cartography | Compatible with C-MAP (MAX N, MAX N+), Insight, Navionics (Gold, NAV+ Platinum+) , NV Digital (Raster US Charts): CMAP enhanced of U.S.A built in (Rest of world charts required. world base map only) |
| Radar | Compatible with Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar |
| Sonar | Compatible with: SonarHub, S5100, StructureScan3D network echo sounder modules |
| Autopilot Integration | Full auto pilot control and commissioning |
| Autopilot steering modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Autopilot manoeuvres turn patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Weather | SiriusXM via WM-3 (USA only), GRIB |
| AIS | Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K) |
| Multimedia | via SonicHub2, FusionLink, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only) |
| Language Support | Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish Other languages supported by Unlock: Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi |
