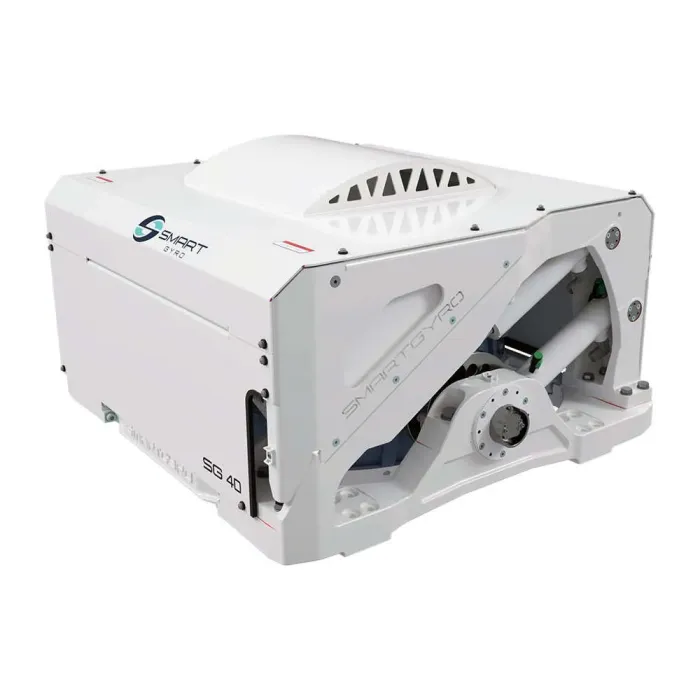

SG40 Gyro Stabilizer for 50–60 ft Boats – 9,100 Nms Angular Momentum

Description

Smartgyro SG40 is the gyro stabilizer of choice for boats from 50-60 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.

Why Smart Gyro?
• Modular Design: The Smartgyro unit can be serviced, maintained, and assembled directly inside the boat.

• Liquid Cooling: The liquid cooling system dissipates heat generated by the motor and spinning bearings while also cooling the inverter and hydraulic manifold.

• Vacuum Enclosure: The sealed vacuum flywheel enclosure minimizes air drag to increase performance and reduce heat and power consumption.

• Control Electronics: The gyro control module uses motion sensors and an Inertial Measuring Unit (IMU) to monitor and process real-time boat behavior data.

• Braking System: The pressurized, closed loop braking system dynamically controls the gyro using hydraulic cylinders and proportional valve.

• Driving Performance: The Smart gyro automatically locks the gyro’s counteracting forces during high-speed turns to make for smoother sailing.
