Sensor-level ultrasonic SENSORA 12/24V for analogue indication of water, fuel & waste levels
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

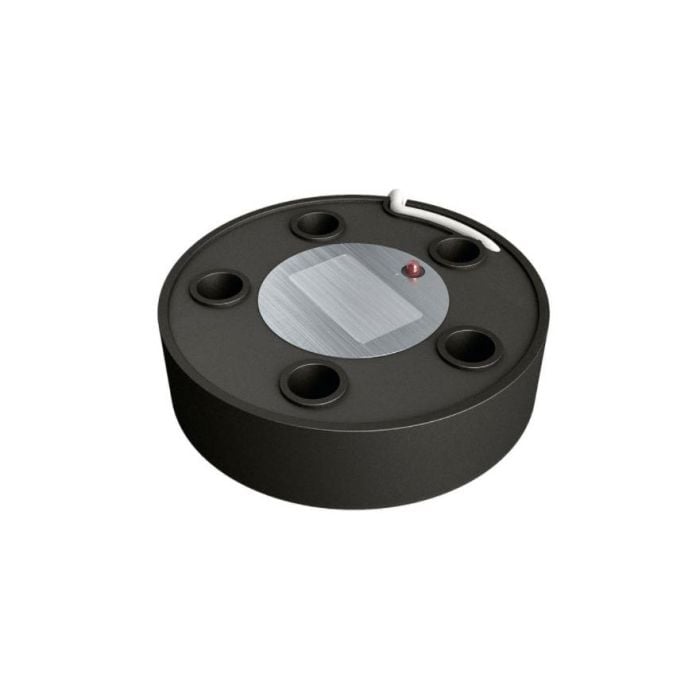

Ultrasonic level sensor 12/24V, for analogue indication of water, fuel and waste levels
SENSORA
Contactless sensor which measures the fluid level in any non-metal tank. Suitable for petrol, diesel fuel, drinking water, black and grey waste water.
The Vetus ultrasonic level sensor measures the fluid level in any type of tank. After installation, the sensor can be calibrated very easily with the aid of a LED and a calibration wire; no other equipment is required.
The sensor may be installed in any type of tank, regardless of its dimensions, but with a maximum depth of 120 cm. The sensor may be connected to all standard Vetus analog level indicators and also to the Vetus waste water control panel (WWCP).
These sensors are not suitable for use with metal tanks.
General Specification
| Voltage | 12V and 24 Volt Dc |
| Current consumption: | 35 mA |
| Interface (SENSORA) | Analogue |
| Interface (SENSORB) | Bus (RS485 bus). |
| Tank depth | 120 cm |
| Accuracy | ± 5% |
| Temperature range | - 20 to + 70°C. |
| Flange | SAE, 5 holes |
| Dimensions | Ø 77 x 23 mm |
