SCM-6 Underwater Light – 316L Stainless Steel – Cool Red – 2400 Lumens

SCM-6 Underwater Light – 316L Stainless Steel – Cool Red – 2400 Lumens
Shadow-Caster LED Lighting
AED 2,162.00 Excl. tax

Stock Status: Out of stock

EEPN 09.03.0602 | OEM SCM-6-CR-20
SCM-6 Underwater Light – 316L Stainless Steel – Bimini Blue – 2400 Lumens
SCM-6 Underwater Light – 316L Stainless Steel – Bimini Blue – 2400 Lumens
EEPN: 09.03.0601
AED 1,929.00
In Stock
SCM-6 Underwater Light – 316L Stainless Steel – Ultra Blue – 2400 Lumens
SCM-6 Underwater Light – 316L Stainless Steel – Ultra Blue – 2400 Lumens
EEPN: 09.03.0603
AED 1,929.00
In Stock

Download Document

Datasheet
document-text

Description

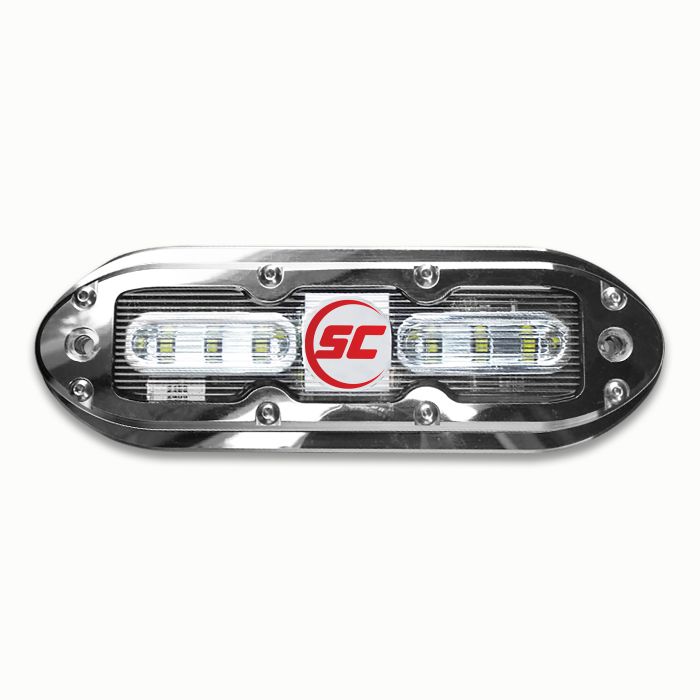

Shadow-Caster LED Lighting SCM-6-CR-20 Underwater Light – 316L Stainless Steel – Cool Red – 2400 Lumens

The Shadow-Caster SCM-6 is a low-profile underwater marine light delivering up to 24 watts of LED illumination. Its compact design allows for flexible mounting across a variety of locations on the vessel.

Constructed with a passivated 316 stainless steel housing and a durable polycarbonate lens, the SCM-6 is built for reliable performance in demanding marine environments. It is available in multiple single colour options, making it well suited for trailer or lift-kept boats.

Key Features

  • Up to 2,400 lumens output with a 120° beam angle
  • Low-profile design for versatile mounting
  • 316 stainless steel housing for corrosion resistance
  • Polycarbonate lens for durability
  • Gel-filled, sealed construction to prevent water ingress
  • Reverse polarity and surge protection for extended lifespan
  • Thermal protection for safe operation even out of water
  • IP68 rated and backed by a 3-year warranty
cog

General Specification

Part Number 09.03.0602
Product Code SCM-6-CR-20
Colour Type Single Colour
Colour Cool Red
Housing Type 316L Stainless Steel
Lumens (Max) 2400
Beam Angle 120°
Power Draw 24W
Input Voltage 10-30V DC
Dimensions 7.2” (183 mm) x 2.4” (61mm) x 0.5” (13mm)
Warranty 3 years
IP Rating IP68
Operating Current Draw 2 amps @ 12 volts
