SC2-CSM Underwater Light - Composite Polymer - Surface Mount - Bimini Blue - 3000 Lumens

SC2-CSM Underwater Light - Composite Polymer - Surface Mount - Bimini Blue - 3000 Lumens
AED 1,101.00 Excl. tax

Stock Status: Out of stock

EEPN 09.03.0587 | OEM SC2-BB-CSM

Download Document

document-text

Description

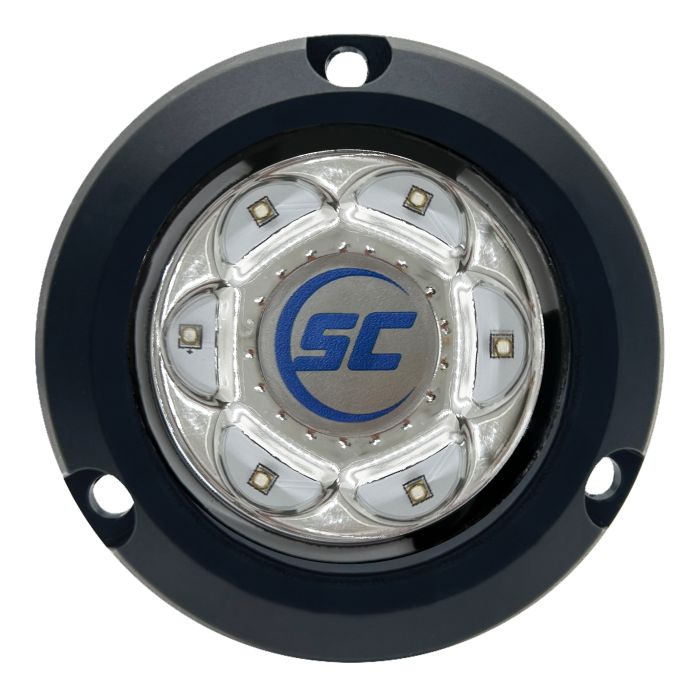

Shadow-Caster LED Lighting SC2-BB-CSM Underwater Light – Composite Polymer – Surface Mount – Bimini Blue – 3000 Lumens

The Shadow-Caster SC2 is a compact 2″ underwater marine light delivering up to 24 watts of LED illumination. Designed for under-waterline surface mounting, it features a sub-compact 2.99″ housing available in composite or bronze options.

Offered in single colour and colour-changing variants, the SC2 provides adjustable brightness and flexible control options, making it suitable for both simple installations and integrated lighting systems.

Its sealed gel-filled construction, tempered glass lens, and integrated protection features ensure reliable performance in demanding marine environments.

Key Features

  • Up to 3,000 lumens output with a 120° beam angle
  • Compact 2.99″ housing in composite or bronze options
  • Gel-filled, fully sealed design to prevent condensation and water ingress
  • Tempered glass lens resistant to scratches and harsh chemicals
  • Reverse polarity and surge protection for extended lifespan
  • Thermal protection for safe operation even out of water
  • Compatible with multiple control options, including Shadow-NET®
  • IP68 rated and backed by a 3-year warranty
cog

General Specification

Part Number 09.03.0587
Product Code SC2-BB-CSM
Colour Type Single Colour
Colour Bimini Blue
Housing Type Thermally Conductive Polymer
Lumens (Max) 3000
Beam Angle 120°
Power Draw 24W
Input Voltage 10-30V DC
OD 2.99" (75.9 mm)
Warranty 3 years
IP Rating IP68
Operating Current Draw 2 amps @ 12 volts; 1 amp @ 24 volts
