SC-3 Underwater Light - Anodized Aluminium - Surface Mount - Blue/White - 3000 Lumens
Download Document
Description

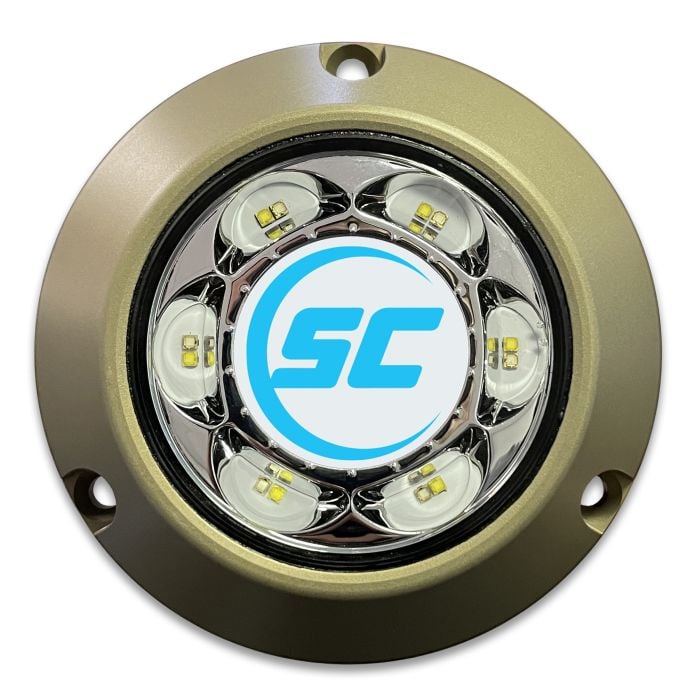

Shadow-Caster LED Lighting SC3-BW-ALSM Underwater Light – Anodized Aluminium – Surface Mount – Blue/White – 3000 Lumens
The Shadow-Caster SC3 is a sub-compact 3″ underwater marine light delivering up to 24 watts of focused LED illumination. Designed for under-waterline surface mounting, it is available in hard anodised aluminium or bronze housings to suit different installation requirements.
Offered in single colour and colour-changing variants, the SC3 provides adjustable brightness and flexible control options, making it suitable for both straightforward setups and integrated lighting systems.
Its sealed gel-filled construction, tempered glass lens, and integrated protection features ensure reliable performance in demanding marine environments.
Key Features
- Up to 3,000 lumens output with a 120° beam angle
- Compact 3″ housing in aluminium or bronze options
- Gel-filled, fully sealed design to prevent condensation and water ingress
- Tempered glass lens resistant to scratches and harsh chemicals
- Reverse polarity and surge protection for extended lifespan
- Thermal protection for safe operation even out of water
- Compatible with multiple control options, including Shadow-NET®
- IP68 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.03.0591 |
| Product Code | SC3-BW-ALSM |
| Colour Type | Dual Colour |
| Colour | Blue/White |
| Housing Type | Anodized Surface Mount |
| Lumens (Max) | 3000 |
| Beam Angle | 120° |
| Power Draw | 24W |
| Input Voltage | 10-30V DC |
| OD | 3.4" (86 mm) |
| Warranty | 3 years |
| IP Rating | IP68 |
| Operating Current Draw | 2 amps @ 12 volts; 1 amp @ 24 volts |
