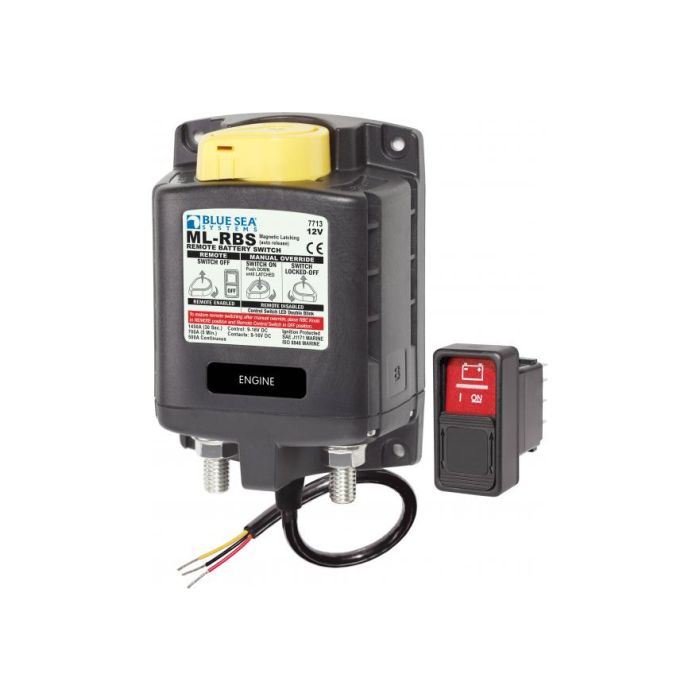

Relay latching (AR) 12V remote battery switch auto release (including 2145-BSS (on)-off-(on) switch)
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
-Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
-LED output to remotely indicate switch state - requires optional LED
-3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
-7∕ 8" (22 mm) stud length accepts multiple cable terminals
-Label recesses for circuit identification
-Silver alloy contacts provide high reliability for switching live loads
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
General Specification
| Coil Function | Auto-Releasing |
| Mounting | #10 |
| Amperage Operating Current | 8mA when OFF 13mA when ON |
| Amperage Operating Current when changing state | <7A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Control Circuit Voltage | 10.1 to 16.5V DC |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 2.07lb (0.94 kg) |
