Pump utility puppy 8.3 Gpm 12 V BSP 2000 series

Jabsco
AED 2,284.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0903 | OEM 23920-2423
Pump utility puppy 8.3 Gpm 24 V NPT 2000 series
Pump utility puppy 8.3 Gpm 24 V NPT 2000 series
EEPN: 04.16.0906
AED 2,668.00
Out of Stock
Pump utility puppy 8.3 Gpm 12 V NPT 2000 series
Pump utility puppy 8.3 Gpm 12 V NPT 2000 series
EEPN: 04.16.0905
AED 2,138.00
Out of Stock
Pump utility puppy 8.3 Gpm 24V BSP 2000 series
Pump utility puppy 8.3 Gpm 24V BSP 2000 series
EEPN: 04.16.0904
AED 2,076.00
Out of Stock
Pump 24V DC BSP model fuse 10A
Pump 24V DC BSP model fuse 10A
EEPN: 04.16.0137
AED 1,225.00
Out of Stock
Pump 12V DC NPT model fuse 15A
Pump 12V DC NPT model fuse 15A
EEPN: 04.16.0138
AED 1,443.00
Out of Stock
Pump 24V DC NPT model fuse 10A
Pump 24V DC NPT model fuse 10A
EEPN: 04.16.0139
Special Price AED 929.50
35% OFF |
Regular Price AED 1,430.00
In Stock

Download Document

Datasheet
document-text

Description

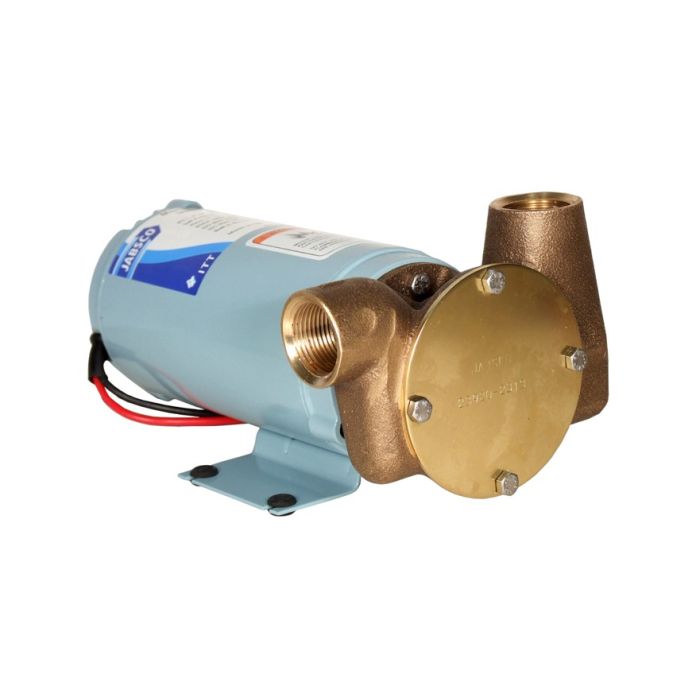

Jabsco Pump utility puppy 8.3 Gpm 12 V BSP 2000 series

cog

General Specification

23920-2423 Utility Puppy 2000' self-priming pump 12 volt d.c

  • Connections: - ¾" BSP inlet and discharge ports.
  • Dimensions: - length 172mm, width 125mm, height 105mm
  • Fuse Size: - 15(amp)
  • Maximum Current: - 13(amps)
  • Output: - up to 30 litres/minute (7 gallons/minute).
  • Built-in dry-running protection for up to 10 minutes after initial prime
  • Rapid self-priming from dry up to 1.2m
  • Lip type shaft seal
  • Non-rusting bronze body
  • Continuously rated electric motor
  • Simple, fully serviceable design with few wearing parts
  • Packaged Dimensions: L:29.00 x H:14.00 x W:16.00cm
  • Actual Weight: 3.30 Kg  (Approx. 3.80 Kg packed)
