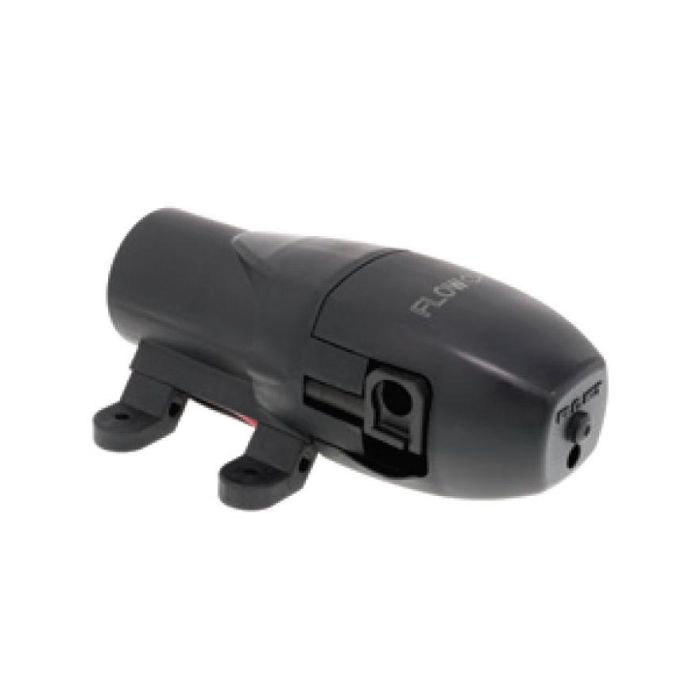

Pump PARMax1 1GPM 12V 35PSI

AED 503.00 Excl. tax

Stock Status: Out of stock

EEPN 04.21.0137 | OEM 42630-3512-3C

Download Document

document-text

Description

Par-Max Series marine freshwater delivery pumps
Par-Max 1, 42630-3512-3C, 12V, 1 GPM open flow (3.8 LPM)
Self‐Priming Capability: Up to 6ft (1.8m) dry prime
Pressure Switch Cut‐Off: 35 PSI (2.4 BAR)
IP Rating: IPX4

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets.
A plastic housing protects the motors on these units from corrosion.

cog

General Specification

Motor design Brushed, permanent magnet TENV
Pumphead upper housing material Glass fiber reinforced polypropylene
Diaphragm Co-molded TPV
Check valves EPDM
Max inlet pressure 30 PSI (2.1 Bar)
Fluid temperature range 32°F – 140°F (0°C – 60°C)
Dry self-priming capability Up to 6ft (1.8m) dry prime
Certifications CE, ISO8846, RCM
Ingress protection IPX4
