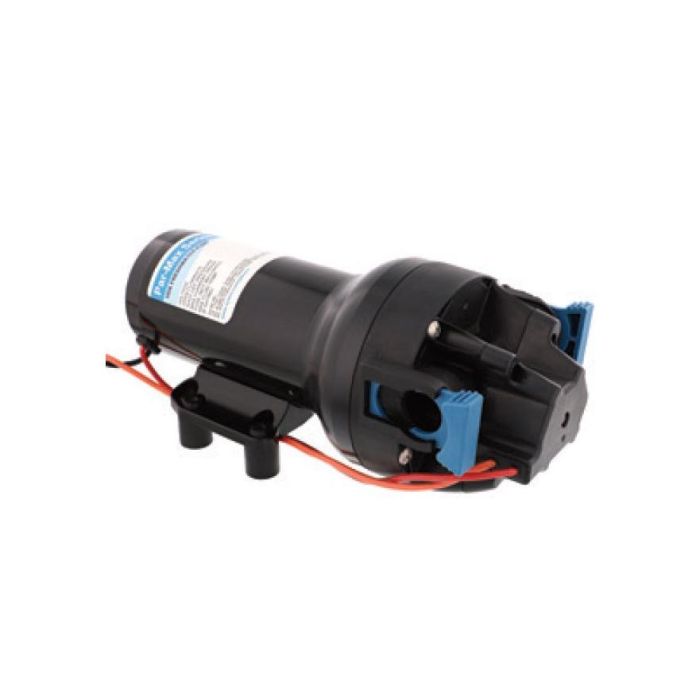

Pump PARMax HD6 6GPM 12V 60PSI
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Par-Max Series marine freshwater delivery pumps
Par-Max HD6, P601J-218S-3A, 12V, 6 GPM open flow (23 LPM)
Self‐Priming Capability: Up to 7ft (2.1m) dry prime
Pressure Switch Cut‐Off: 60 PSI (4.1 BAR)
IP Rating: IPX6
With 2 x 3/4" Straight Hosebarb & 90 deg. strainer
Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets.
A plastic housing protects the motors on these units from corrosion.
General Specification
| Motor design | Brushed, permanent magnet TENV |
| Pumphead upper housing material | Glass fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check valves | EPDM |
| Max inlet pressure | 30 PSI (2.1 Bar) |
| Fluid temperature range | 32°F – 140°F (0°C – 60°C) |
| Dry self-priming capability | Up to 7ft (2.1m) dry prime |
| Certifications | CE, ISO8846, RCM |
| Ingress protection | IPX6 |
