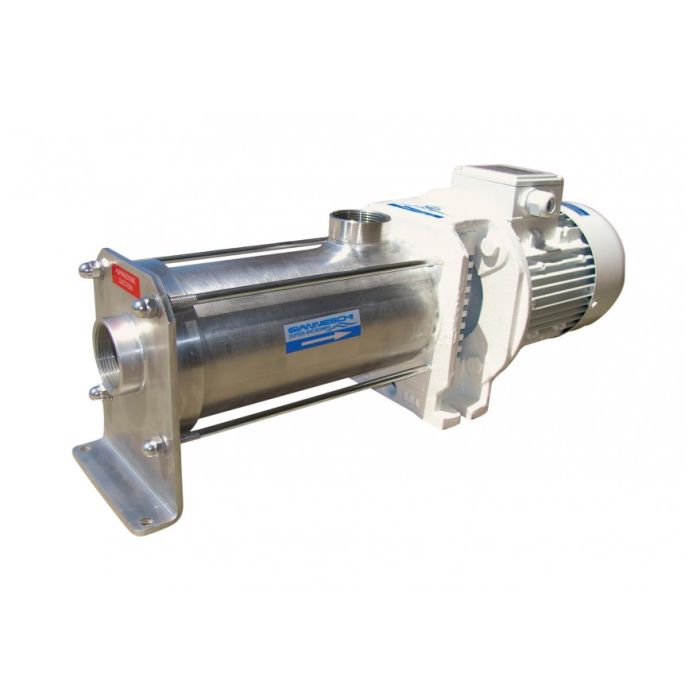

Pump MVI80 1.1 kW 24V 1450 rpm self priming single screw

Gianneschi
AED 20,582.00 Excl. tax

Stock Status: Out of stock

EEPN 04.14.0010 | OEM 01GMVI8001
Pump MVI60 0.8 kW 24V 1450 rpm self priming single screw
Pump MVI60 0.8 kW 24V 1450 rpm self priming single screw
EEPN: 04.14.0007
AED 19,058.00
Out of Stock
Pump MVI80 1.5 kW 230V 1 Ph 50 Hz 1450 rpm self priming single screw
Pump MVI80 1.5 kW 230V 1 Ph 50 Hz 1450 rpm self priming single screw
EEPN: 04.14.0011
AED 17,401.00
Out of Stock
Pump MVI60 1.1 kW 230V 1 Ph 50/60Hz 1450 rpm self priming single screw
Pump MVI60 1.1 kW 230V 1 Ph 50/60Hz 1450 rpm self priming single screw
EEPN: 04.14.0008
AED 15,866.00
In Stock
Pump MVI60 1.1 kW 230/400V 3 Ph 50 Hz 1450 rpm self priming single screw
Pump MVI60 1.1 kW 230/400V 3 Ph 50 Hz 1450 rpm self priming single screw
EEPN: 04.14.0039
AED 14,843.00
Out of Stock
Pump MVI 100 1.5 kW 230/400V 3 Ph 50 Hz 1500 rpm self priming single screw
Pump MVI 100 1.5 kW 230/400V 3 Ph 50 Hz 1500 rpm self priming single screw
EEPN: 04.14.0046
AED 18,954.00
Out of Stock
Pump MVI 80 1.5kW 230/400V 3 Ph 50Hz 1450 rpm self-priming single screw
Pump MVI 80 1.5kW 230/400V 3 Ph 50Hz 1450 rpm self-priming single screw
EEPN: 04.14.0040
AED 16,279.00
Out of Stock

Download Document

Operational Manuals
Datasheet
Spare Parts Lists
document-text

Description

The electric pumps “MVI” series are volumetric pumps.

A metal single-thread helical rotor formed by an endless screw turns in a floating rubber stator with double-thread helical profile. The pump can practically manage all types of fluid like dirty, viscous and/or with suspended parts.

Even if they are self-priming pumps, in order to allow the self-priming and lubricate the stator it is necessary to fill the body pump with water. Gianneschi suggests to install a no-return valve on the suction pipe in order to prevent the pump empting.

At the first start or after a long time of no use, it is important to verify the correct direction of rotation to avoid the unscrewing of the rotor.

cog

General Specification

Main pump features:

  • Accurate mechanical joint in s/steel inox 316 and NBR
  • High quality NBR floating stator
  • Limited noise and vibration level
  • Screw rotor in s/steel inox 316
  • Standardized motor easily to be substituted



Applications:

  • Black/Waste water
  • Grey water



Port Size: From 1'' 1/2 to 2'' BSP



Pump casing: Stainless steel



Impeller / Gear: Stainless steel



Shaft: Stainless steel
