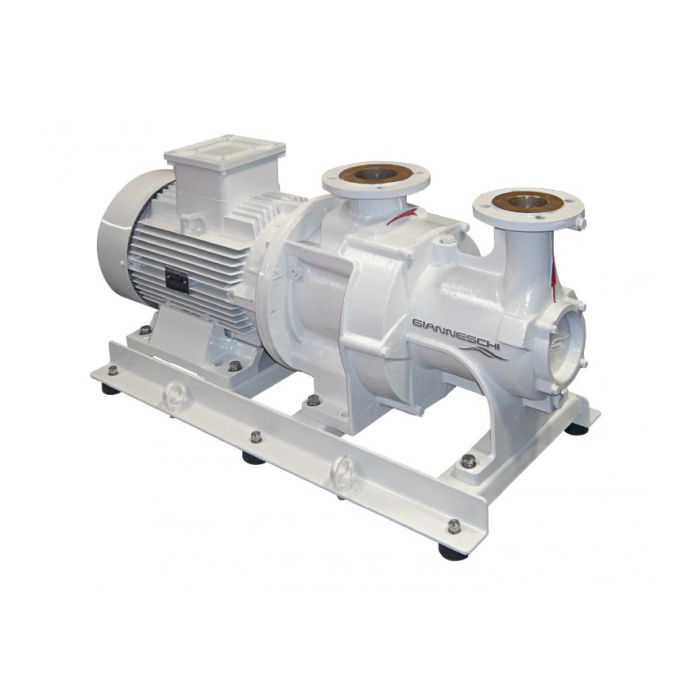

Pump electric driven ACG 65-227/B/B

AED 76,382.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0969 | OEM 01ACG65227BB
document-text

Description

Description

The ACG Gigetta pump series features a two-stage system with dual impellers, combining the high dynamic fluid efficiency of a centrifugal impeller with a helical impeller designed for rapid priming. This unique helical impeller ensures very quick priming (100mm diameter x 100 meters pipe length in under 2 minutes), eliminating the need for external priming systems like ejectors or vacuum pumps, thus reducing installation and maintenance costs. The specially designed centrifugal impeller and diffusor deliver maximum performance, while a double oil bath seal prevents dry running during priming, enhancing reliability and reducing maintenance. Constructed from high-quality materials such as marine-grade bronze and stainless steel, these pumps are ideal for yachts, megayachts, workboats, and the OEM nautical industry.

Key Features

  • Ultrafast self-priming type without any external device

  • High pressure and flow with low power consumption

  • Low noise level during priming and service

  • Double oil-bath mechanical seal

  • Easy installation and maintenance

  • Designed and made for the marine environment

cog

General Specification

No specifications available.
