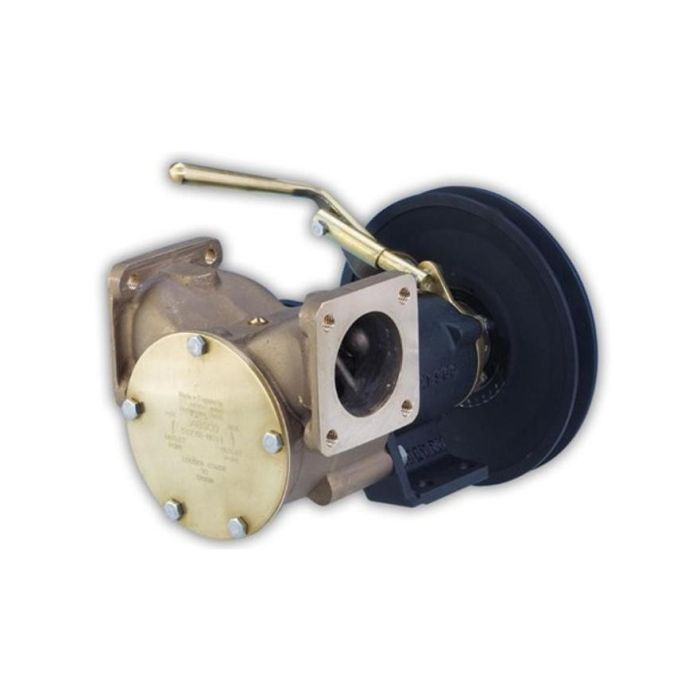

Pump clutch manual 51.5gpm 1 1/2 flange port A&B pulley belt suitable for bilge, deckwash & firefighting application

Jabsco
AED 11,057.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0180 | OEM 51220-0011

Download Document

Datasheet
document-text

Description

Jabsco Pump clutch manual 51.5gpm 1 1/2 flange port A&B pulley belt suitable for bilge, deckwash & firefighting application

cog

General Specification

51220-0011 1½" bronze pump, 200-size, foot mounted with flanged ports

Manual clutch with 1A / 1B pulley

  • Connections:- 1½” nominal bore flanged ports
  • Dimensions:- 285mm long, 180mm pulley diameter, 152mm across ports
  • Output:- at 1500 rpm 80 litres/minute (17.5 galls/min) at 3m total head
  • Heavy duty bilge and deck wash pump
  • Bronze body, stainless steel shaft, mechanical shaft seal
  • Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
  • Self-priming up to 3m vertical lift
  • Self adjusting clutch
  • BSP threaded port adapters
  • Packaged Dimensions: L:34.00 x H:26.00 x W:28.00cm
  • Actual Weight: 12.52 Kg  (Approx. 13.52 Kg packed)
