Pump clutch manual 51.5 Gpm 1-1/2 BSP port A & B pulley belt suitable for bilge & deckwash application

Jabsco
AED 11,280.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0181 | OEM 51200-2011

Download Document

Datasheet
document-text

Description

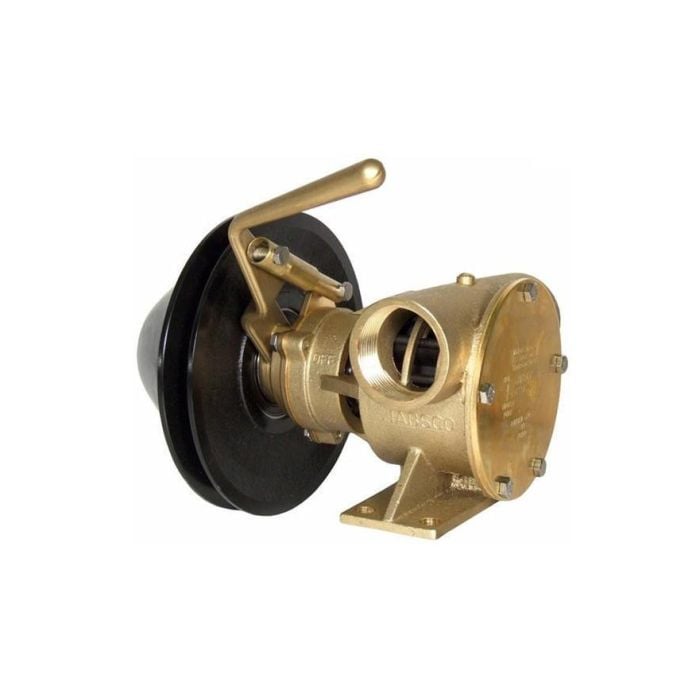

Jabsco Pump clutch manual 51.5 Gpm 1-1/2 BSP port A & B pulley belt suitable for bilge & deckwash application

cog

General Specification

51200-2011 1½" bronze pump, 200-size, foot mounted with BSP threaded ports

Manual clutch with 1A / 1B pulley

  • Connections:- 1½” BSP internal threaded ports.
  • Dimensions:- 244mm long, 180mm pulley diameter
  • Output:- at 1500 rpm 195 litres/minute (43 gallons/min) at 3m total head
  • Heavy duty bilge and deck wash pump
  • Bronze body, stainless steel shaft, mechanical shaft seal
  • Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
  • Self-priming up to 3m vertical lift
  • Self-adjusting clutch
  • Packaged Dimensions: L:34.00 x H:26.00 x W:28.00cm
  • Actual Weight: 8.90 Kg  (Approx. 9.90 Kg packed)
Press to skip carousel

More from Jabsco

Blower flangemount HD 7.1 m3/min 12V
In stock
Jabsco
Blower flangemount HD 7.1 m3/min 12V
AED 2,114.00
EEPN 05.05.0006 OEM 35760-0092
Impeller Flexible Neoprene Type K Drive Type 3 12 Blade Dia. 57mm Width 31.5mm Shaft Dia. 16mm Brass Insert
In stock
Jabsco
Impeller Flexible Neoprene Type K Drive Type 3 12 Blade Dia. 57mm Width 31.5mm Shaft Dia. 16mm Brass Insert
Special Price AED 172.50
50% OFF |
Regular Price AED 345.00
EEPN 04.23.0036 OEM 4568-0001-P
Impeller Flexible Neoprene Type K Drive Type 3 12 Blade Dia. 57mm Width 31.5mm Shaft Dia. 16mm Brass Insert
Impeller M neoprene drive3 blade8 Dia. 65 mm 51 mm wide shaft Dia. 16 mm Brass insert with grease & gasket (display pack)
In stock
Jabsco
Impeller M neoprene drive3 blade8 Dia. 65 mm 51 mm wide shaft Dia. 16 mm Brass insert with grease & gasket (display pack)
AED 463.00
EEPN 04.23.0047 OEM 4598-0001-P
Impeller O neoprene drive7 W88.9 mm blade9 Dia. 95 mm shaft Dia. 25.4 mm Brass insert without grease & gasket (box pack)
In stock
Jabsco
Impeller O neoprene drive7 W88.9 mm blade9 Dia. 95 mm shaft Dia. 25.4 mm Brass insert without grease & gasket (box pack)
Special Price AED 839.15
35% OFF |
Regular Price AED 1,291.00
EEPN 04.23.0055 OEM 6760-0001B
Impeller O neoprene drive7 W88.9 mm blade9 Dia. 95 mm shaft Dia. 25.4 mm Brass insert without grease & gasket (box pack)
Impeller Flexible Nitrile Type O Drive Type 7 9 Blade Dia. 95mm Width 88.9mm Shaft Dia. 25.4mm Brass Insert
In stock
Jabsco
Impeller Flexible Nitrile Type O Drive Type 7 9 Blade Dia. 95mm Width 88.9mm Shaft Dia. 25.4mm Brass Insert
Special Price AED 534.00
50% OFF |
Regular Price AED 1,068.00
EEPN 04.23.0056 OEM 6760-0003-P
Impeller Flexible Nitrile Type O Drive Type 7 9 Blade Dia. 95mm Width 88.9mm Shaft Dia. 25.4mm Brass Insert

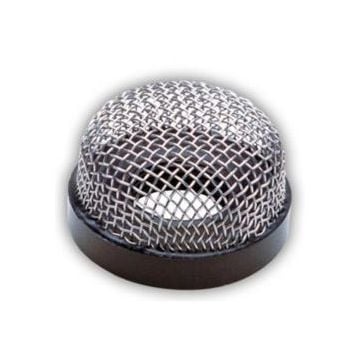

Strainer SS for livewell pumps
