Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 12V 2A Pulley Flanged Ports 5A Fuse

Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 12V 2A Pulley Flanged Ports 5A Fuse
Jabsco
AED 5,127.50 Excl. tax
50% OFF |
AED 10,255.00

Stock Status: In stock

EEPN 04.16.0153 | OEM 50270-0011
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 24V 2A Pulley Flanged Ports 2.5A Fuse
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 24V 2A Pulley Flanged Ports 2.5A Fuse
EEPN: 04.16.0154
Special Price AED 5,127.50
50% OFF |
Regular Price AED 10,255.00
In Stock
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 12V 1B Pulley Flanged Ports 5A Fuse
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 12V 1B Pulley Flanged Ports 5A Fuse
EEPN: 04.16.0155
Special Price AED 4,075.00
50% OFF |
Regular Price AED 8,150.00
In Stock
Pump clutch 2A pulley 12V 79 Gpm BSP port Bronze body for bilge & deckwash application
Pump clutch 2A pulley 12V 79 Gpm BSP port Bronze body for bilge & deckwash application
EEPN: 04.16.0157
AED 10,255.00
Out of Stock
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 24V 1B Pulley Flanged Ports 2.5A Fuse
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 24V 1B Pulley Flanged Ports 2.5A Fuse
EEPN: 04.16.0156
Special Price AED 5,127.50
50% OFF |
Regular Price AED 10,255.00
In Stock
Pump clutch 2A pulley 24V 79 Gpm BSP port Bronze body for bilge & deckwash application
Pump clutch 2A pulley 24V 79 Gpm BSP port Bronze body for bilge & deckwash application
EEPN: 04.16.0158
AED 10,255.00
Out of Stock
Pump clutch 1B pulley 24V 79 Gpm BSP port Bronze body for bilge & deckwash application
Pump clutch 1B pulley 24V 79 Gpm BSP port Bronze body for bilge & deckwash application
EEPN: 04.16.0160
AED 6,950.00
Out of Stock
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 12V 1B Pulley BSP Ports 5A Fuse
Pump Flexible Impeller Clutch Driven 50270 Series 300 LPM 12V 1B Pulley BSP Ports 5A Fuse
EEPN: 04.16.0159
Special Price AED 5,127.50
50% OFF |
Regular Price AED 10,255.00
In Stock

Download Document

Datasheet
Service Manual
document-text

Description

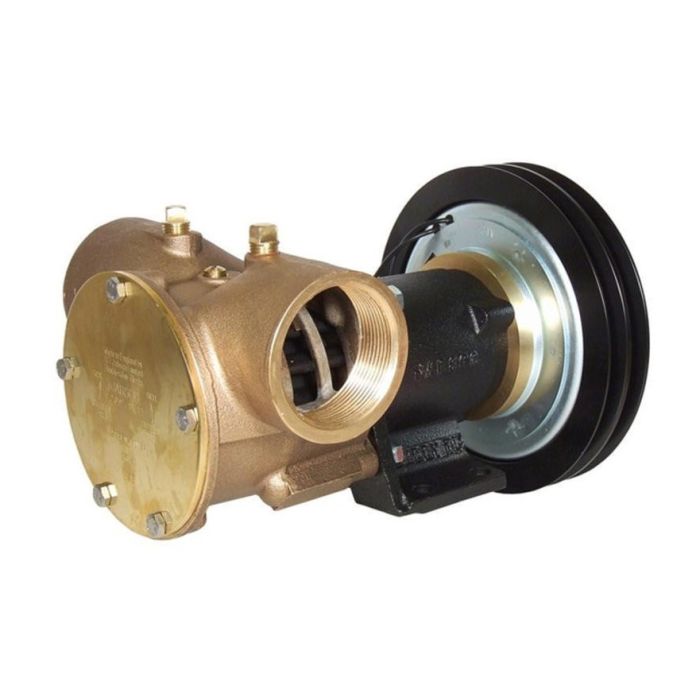

Jabsco Pump clutch 2A pulley 12V 79 Gpm flanged port Bronze body for bilge & deckwash application

cog

General Specification

50270-0011 2" bronze pump, 270-size, foot mounted with flanged ports

12 volt dc electric clutch with 2A pulley

  • Connections: - 2” nominal bore flanged ports with 2” BSP counter flanges
  • Dimensions: - 270mm long, 180mm pulley diameter, 173mm across ports
  • Fuse Size: - 5(amp)
  • Output: - at 1500 rpm 267 litres/minute (59 galls/min) at 3m total head
  • Heavy duty bilge and deck wash pump
  • Bronze body, stainless steel shaft, mechanical shaft seal
  • Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
  • Self-priming up to 3m vertical lift
  • BSP threaded port adapters available
  • Packaged Dimensions: L:34.00 x H:27.00 x W:28.00cm
  • Actual Weight: 13.36 Kg  (Approx. 14.36 Kg packed)
