Pump Flexible Impeller Clutch Driven 50220 Series 195 LPM 12V 2A Pulley 5A Fuse

Pump Flexible Impeller Clutch Driven 50220 Series 195 LPM 12V 2A Pulley 5A Fuse
Jabsco
AED 4,107.50 Excl. tax
50% OFF |
AED 8,215.00

Stock Status: In stock

EEPN 04.16.0161 | OEM 50220-0011
Pump clutch 2A pulley 24V 51 Gpm flanged port Bronze body for bilge, deckwash & firefighting application
Pump clutch 2A pulley 24V 51 Gpm flanged port Bronze body for bilge, deckwash & firefighting application
EEPN: 04.16.0162
AED 8,215.00
Out of Stock
Pump Flexible Impeller Clutch Driven 50220 Series 195 LPM 24V 1B Pulley 2.5A Fuse
Pump Flexible Impeller Clutch Driven 50220 Series 195 LPM 24V 1B Pulley 2.5A Fuse
EEPN: 04.16.0164
Special Price AED 4,107.50
50% OFF |
Regular Price AED 8,215.00
In Stock
Pump Flexible Impeller Clutch Driven 50220 Series 195 LPM 12V 1B Pulley 5A Fuse
Pump Flexible Impeller Clutch Driven 50220 Series 195 LPM 12V 1B Pulley 5A Fuse
EEPN: 04.16.0163
Special Price AED 4,107.50
50% OFF |
Regular Price AED 8,215.00
In Stock

Download Document

Datasheet
Service Manual
document-text

Description

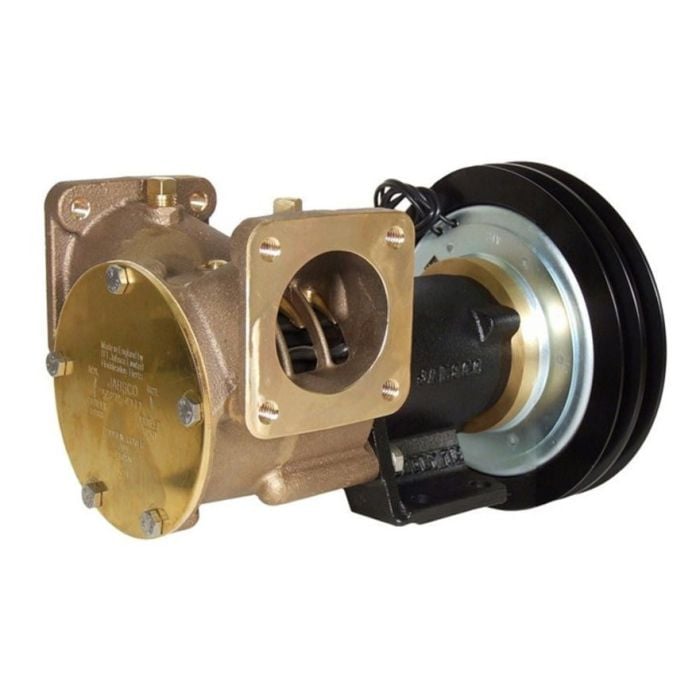

Jabsco Pump clutch 2A pulley 12V 51 Gpm flanged port Bronze body for bilge, deckwash & firefighting application

cog

General Specification

50220-0011 1½" bronze pump, 200-size, foot-mounted with flanged ports

  • 12 volt dc electric clutch with 2A pulley
  • Connections: 1½” nominal bore flanged ports with 1½” BSP counter flanges
  • Dimensions: 250mm long, 180mm pulley diameter, 152mm across ports
  • Fuse Size: 5(amp)
  • Output: at 1500 rpm 195 litres/minute (43 gallons/min) at 3m total head
  • Heavy duty bilge and deck wash pump
  • Bronze body, stainless steel shaft, mechanical shaft seal
  • Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
  • Self-priming up to 3m vertical lift
  • Can handle moderate amounts of suspended solid matter
  • BSP threaded port adapters available
  • Packaged Dimensions: L:34.00 x H:27.00 x W:28.00cm
  • Actual Weight: 12.36 Kg  (Approx. 13.36 Kg packed)
