Pump clutch 2A pulley 12V 51 Gpm BSP port Bronze body for bilge & deckwash application

Jabsco
AED 6,981.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0165 | OEM 50200-2011
Pump clutch 1B pulley 24V 51 Gpm BSP port Bronze body for bilge & deckwash application
Pump clutch 1B pulley 24V 51 Gpm BSP port Bronze body for bilge & deckwash application
EEPN: 04.16.0913
AED 4,893.00
Out of Stock
Pump clutch 2A pulley 24V 51 Gpm BSP port Bronze body for bilge & deckwash application
Pump clutch 2A pulley 24V 51 Gpm BSP port Bronze body for bilge & deckwash application
EEPN: 04.16.0166
AED 4,893.00
Out of Stock
Pump Flexible Impeller Clutch Driven 50200 Series 195 LPM 12V 1B Pulley 5A Fuse
Pump Flexible Impeller Clutch Driven 50200 Series 195 LPM 12V 1B Pulley 5A Fuse
EEPN: 04.16.0167
Special Price AED 3,490.50
50% OFF |
Regular Price AED 6,981.00
In Stock

Download Document

Datasheet
Service Manual
document-text

Description

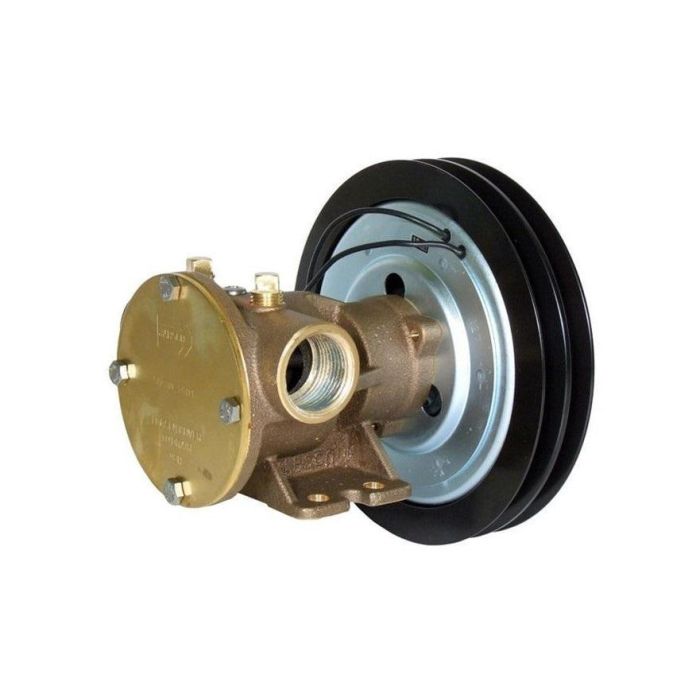

Jabsco Pump clutch 2A pulley 12V 51 Gpm BSP port Bronze body for bilge & deckwash application

cog

General Specification

50200-2011 1½" bronze pump, 200-size, foot-mounted with BSP threaded ports

12 volt dc electric clutch with 2A pulley

  • Connections: 1½” BSP internal threaded ports.
  • Dimensions: 200mm long, 180mm pulley diameter, 152mm across ports
  • Fuse Size: 5(amp)
  • Output: at 1500 rpm 195 litres/minute (43 gallons/min) at 3m total head
  • Heavy duty bilge and deck wash pump
  • Bronze body, stainless steel shaft, mechanical shaft seal
  • Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
  • Self-priming up to 3m vertical lift
  • Can handle moderate amounts of suspended solid matter
  • Packaged Dimensions: L:34.00 x H:26.00 x W:27.00cm
  • Actual Weight: 8.82 Kg  (Approx. 9.82 Kg packed)
