Pump bilge/shower drain 13 Lpm 12V 37202 series

Jabsco
AED 1,594.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0114 | OEM 37202-2012
Pump bilge / shower drain 13 Lpm 24V 37202 series
Pump bilge / shower drain 13 Lpm 24V 37202 series
EEPN: 04.16.0115
AED 2,130.00
Out of Stock
Kit service for 04.16.0114 / 04.16.0115
Kit service for 04.16.0114 / 04.16.0115
EEPN: 04.16.0116
AED 670.00
Out of Stock

Download Document

Datasheet
document-text

Description

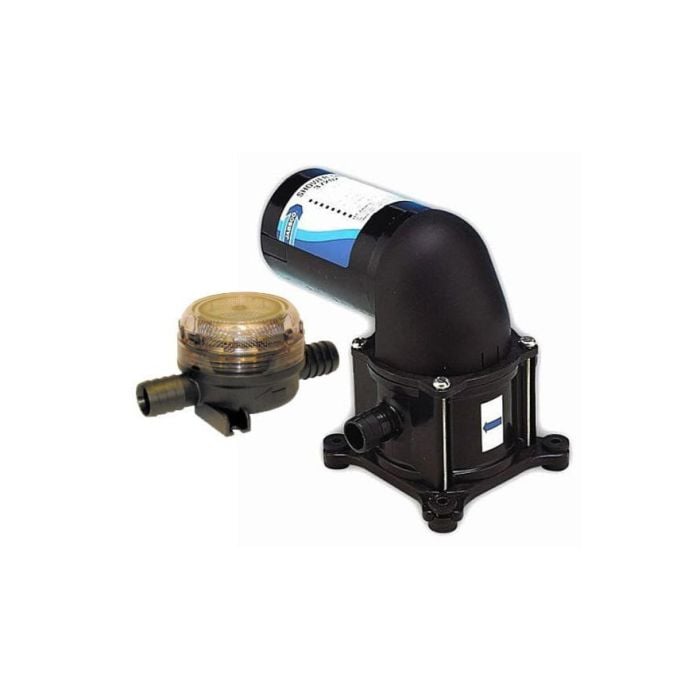

37202-2012 Self-priming diaphragm pump 12 volt d.c with connections for 19mm bore hose

cog

General Specification

  • Connections:- for 19mm (¾”) bore hose.
  • Dimensions:- 130 mm long, 165mm wide, 150mm high
  • Fuse Size:- 10(amp)
  • Output:- up to 13 litres/minute (2.8 gallons/minute). Maximum recommended total head 3m
  • Updated version of the popular PAR 37202
  • Quiet running with shielded drive
  • Single diaphragm design allows extended dry running
  • Jabsco ‘Pump Guard’ strainer included with pump
  • Self-primes up to 2m vertical lift
  • Packaged Dimensions: L:20.00 x H:17.00 x W:15.00cm
  • Actual Weight: 2.08 Kg  (Approx. 2.58 Kg packed)
