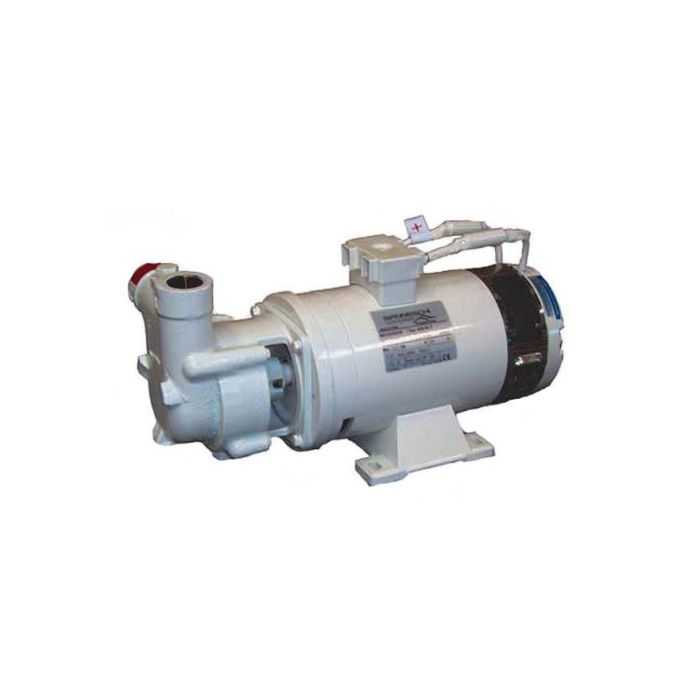

Pump ACB 80E B 230 V 1 Ph 50 Hz 0.45 kW 2900 Rpm self priming
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
The Liquid Ring self-priming electro-pump "ACB" series, with star impeller, have an outstanding self-priming capacity (up to 8m vertical). Only at the first start or after a long term disuse, it is necessary to fill the pump’s body with water, then, the pump automatically primes, also with the suction pipe empty.
Gianneschi suggest to install a filter and a clapet valve on the suction pipe in order to avoid a water reflux.
General Specification
Model: ACB 80
The Liquid Ring self-priming electro-pump "ACB" series, with star impeller, has an outstanding self-priming capacity (up to 8m vertical). Only at the first start or after a long term disuse, it is necessary to fill the pump’s body with water, then, the pump automatically primes, also with the suction pipe empty. It is suggested to install a filter and a clapet valve on the suction pipe in order to avoid a water reflux.
Ø In: BSP 3/4 ''
Ø Out: BSP 3/4 ''
Supply: A.C.
Frequency (Hz): 50
Voltage: Single-phase (1Ph)
Materials
- Pump casing: Bronze
- Impeller gear: Bronze
- Shaft: Stainless steel
Applications:
- Ballast
- Bilge
- Diesel oil
- W./S.W. Washing
- Fire-fighting
- W feeding
- WPS - Hydrophore
Main feature:
- Fast self-priming
- Side channel and liquid ring construction
- Simple and compact
