Panel Display 12V for monitoring Position Monitored Ball Valves

Panel Display for remote monitoring of the Position Monitored Ball Valves.
Position Monitoring allows remote monitoring of the Ball Valve position.
The Position Monitoring circuit can also be used as part of an engine or generator start interlock to ensure these don’t start without cooling water available.
Supply voltage: 12V
maximum switching current: 500mA
Wire length: 2m

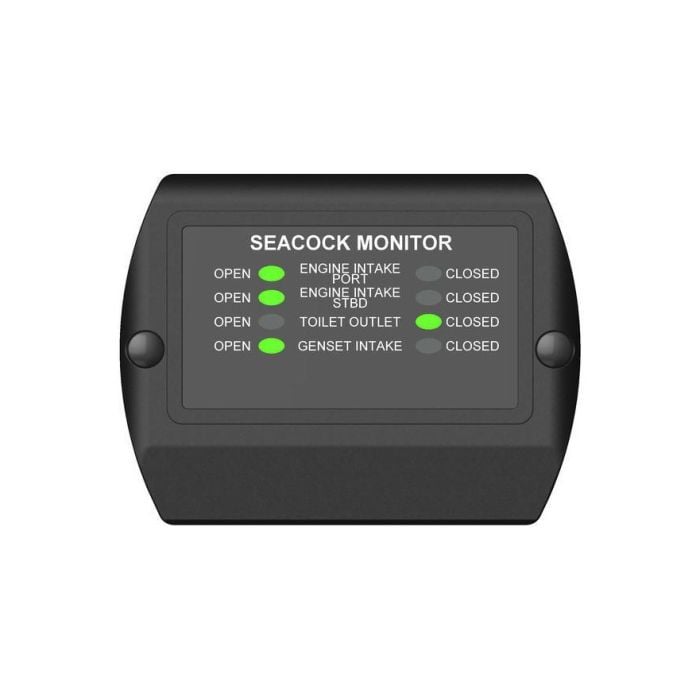

This control panel will indicate the open or closed status of up to 4 ball valves. Although designed to work with Tru-design own range, this control panel will work with any device which sends an open/closed or on/off signal.
