Panel CSP6 micro series
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

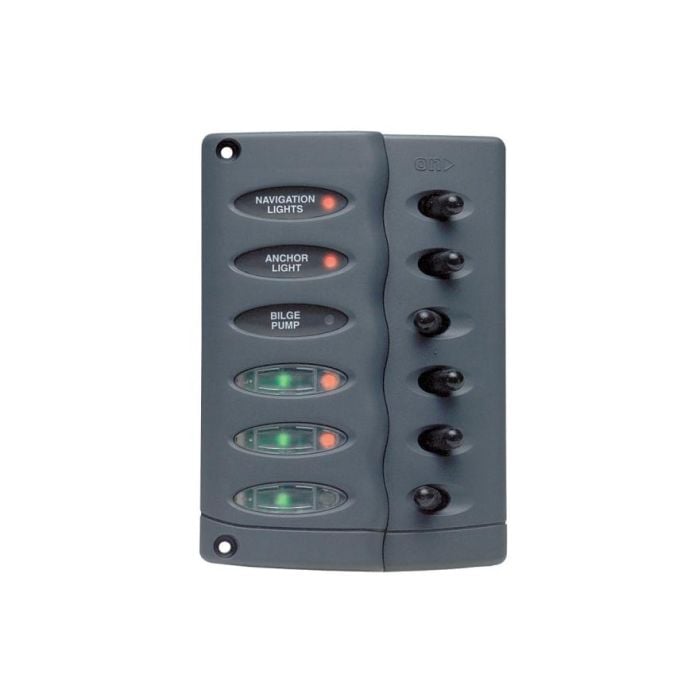

Contour switch panel, CSP6, without fuse and without PTC
Positive temperature Co-efficient
Green LED backlit labels; red systems on indicator
Switches rated 20A dc
Removable cover plates conceal screws & water drain
Label set SET-1SP included
CSP6 Includes 6 switches unfused for installation where separate fused supply is available.
The panels are only spray proof from the front
General Specification
| Part number | Model | L x W x H (mm) | Label sheet | Fuses | PTC |
| 08.11.0408 | CSP6 | 158x112x65 | SET-1SP | No | No |
| 08.11.0409 | CSP6-F | 158x112x75 | SET-1SP | 3 | No |
| 08.11.0548* | CSP6-FW* | 158x112x75 | SET-1SP | 3 | No |
| 08.11.0410 | CSP6-PTC | 158x112x75 | SET-1SP | No | 6 |
| 08.11.0550* | CSP6-PTCW* | 158x112x75 | SET-1SP | No | 6 |
